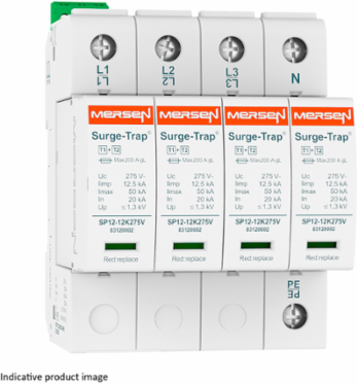

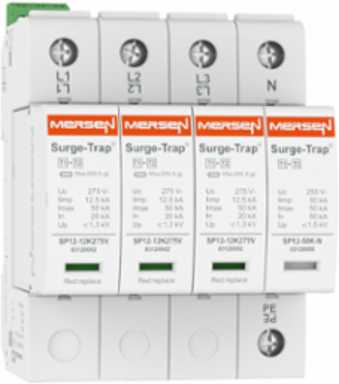

Mersen 83120147 SPD Type 1+2, 12.5kA, Uc320V, 4+0 TNS, 4 Poles, 4 Modules, Pluggable, Remote

SPD Type 1+2, 12.5kA, Uc320V, 4+0 TNS, 4 Poles, 4 Modules, Pluggable, Remote
SPD Type 1+2, 12.5kA, Uc320V, 4+0 TNS, 4 Poles, 4 Modules, Pluggable, Remote
  • MPN: 83120147
  • PPN: FER-83120147

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1569.37/ EA

Description

STP T12 12.5 is the series of combined Type 1+2/Class I+II devices for discharging lightning currents and protecting against voltage surges, in accordance with EN/IEC 61643-11. Suitable as the first step of protection in incoming power supply panels and areas with exposure to the atmosphere, where installations are usually provided with an external lightning protection system.

Features

  • TNS, TNC, TT and IT networks
  • DIN-rail mountable, plug-in format
  • Visual and remote end of life indicators
  • Reversible chassis to allow cable entry from above or below
  • Mechanically coded cartridges to avoid cartridge replacement errors

Specifications

Specifications

Lightning impulse current (10/350μs)
12.5kA per phase
Nominal discharge current (8/20μs)
20kA per phase
Back-up fuse
200 A gG
Min Operating Temp
-40 °C
Lightning Impulse Current 10 350 Iimp
12,5 kA
Uc L-Pe
320 V
Up At In L-Pe
≤1.4 kV
Product Line
Surge-Trap® Pluggable STPT12 Series - 12.5kA
Wire Type
Rigid: 6…35mm² / Stranded: 6…25mm²
Iec Spd Type
Type 1+2 / Class I+II
Max Back-Up Fuse
200 A gG
Max Discharge Current Imax 8 20
50kA
Replacement Plug L-N
SP12-12K320V
Maximum discharge current (8/20μs)50kA per phase
Un(L-N/L-L)60V, 120/208V, 230/400V, 277/480V and 400/690V
Max Operating Temp80 °C
Short Circuit Withstand Isccr25 kA
Nominal Operating Volt Rating Un277 / 480 V
Uc L- Pe320 V
Country Of OriginES
Product BrandSurge-Trap®
Number Of Poles4-Pole
Housing MaterialPA66 CT1; V-0
Ac Or DcAC
Nominal Discharge Current20kA
System ConfigurationTT. TNS
