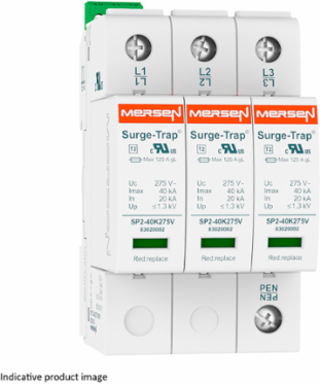

Mersen 83020134 Surge-Trap® Pluggable SPD Type 2 - 40kA, 3 Pole, DIN-Rail Mount, 275V

Surge-Trap® Pluggable SPD Type 2 - 40kA, 3 Pole, DIN-Rail Mount, 275V - https://media.province-electric.com/xlsx_mersen/2021q1/images/medium/7f6ce0dc0978a32cb9abdb129893dd9c66ddb113-medium.png

Surge-Trap® Pluggable SPD Type 2 - 40kA, 3 Pole, DIN-Rail Mount, 275V

MPN: 83020134
PPN: FER-83020134

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$724.52/ EA

Qty:

Loading add to cart quantity...

Description

STP T2 40 is the series of Type 2/Class II devices for discharging voltage surges, in accordance with EN/IEC 61643-11 and certified UL 1449 4th Ed. Suitable for the second stage of protection in supply distribution panels in which Type 1 protection devices are installed upstream, or for the first stage of protection in commercial or other applications not exposed to direct strikes and with no external lightning protection system.

Features

TNS, TNC, TT and IT networks
DIN-rail mountable, plug-in format
Visual and remote end of life indicators
Reversible chassis to allow cable entry from above or below
Mechanically coded cartridges to avoid cartridge replacement errors

Specifications

Maximum discharge current (8/20μs): 40kA per phase

Un(L-N/L-L): 48V, 60V, 120/208V, 230/400V, 277/480V, 400/690V & higher

File UL: E468946

Min Operating Temp: -40 °C

Torque Rating: 35.4 lb-in

Response Time: 25 ns

Mcov L-L: 550 V

Uc L-Pen: 275 V

Vpr L-G: 900 V

Country Of Origin: ES

Product Brand: Surge-Trap®

Number Of Poles: 3-Pole

Housing Material: PA66 CT1; V-0

Ac Or Dc: AC

Nominal Discharge Current: 20kA

System Configuration: TNC

Nominal discharge current (8/20μs)20kA per phase

Back-up fuse125 A gG

Max Operating Temp85 °C

Short Circuit Current Rating Sccr50 ... 100 kA

Short Circuit Withstand Isccr25 kA

Mcov L-G275 V

Nominal Operating Volt Rating Un230 / 400 V

Up At In L-Pen≤1.3 kV

Vpr L-L1800 V

Product LineSurge-Trap® Pluggable STPT2 Series - 40kA

Wire TypeRigid: 6…35mm² / Stranded: 6…25mm²

Iec Spd TypeType 2 / Class II

Max Back-Up Fuse125 A gG

Max Discharge Current Imax 8 2040kA

Replacement Plug L-NSP2-40K275V
