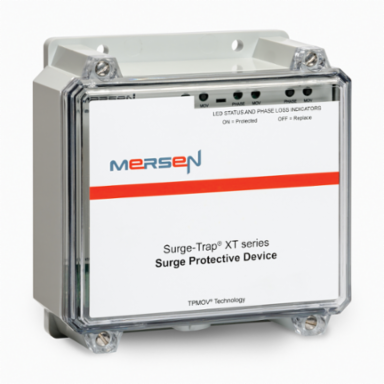

Mersen STXT600Y10A SPD - Type 1 ST-XT 600Y/347V L-L VPR 2500V L-L MCOV 840V 100 kA LED + Audible
- MPN: STXT600Y10A
- UPC: 782001471187
- PPN: FER-STXT600Y10A
CAD
$2657.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The Surge-Trap Type 1 STXT Series has standard EMI/RFI Filtering, LED indication on each phase, optional remote indication, and surge capacities up to 200kA. The STXT features TPMOV® technology inside, making it the safest product available, and does not require additional overcurrent protection. With line or load side installation flexibility, this unit is a great fit from the service entrance all the way down to each distribution and/or branch panel.
Specifications
Key Specifications
- Frequency (Hz)
- 50/60 Hz
- UL SPD Type
- Type 1
- AC or DC
- AC
- System Configuration
- 3-Phase Wye
- Indication System Type
- LED and Remote Audible Alarm
- Enclosure NEMA Type
- 4X Non-Metallic
- Installation Mounting
- Panel or Wall Mount
- MCOV L-L
- 840 V
- MCOV L-N
- 420 V
- VPR L-L
- 2500 V
- VPR L-N
- 1500 V
- Length
- 7.4 in
- Weight
- 3.8 lb
ROHS CompliantYes
FormatSTXT
Nominal Discharge Current (In) (8/20)20 kA
Indication SystemYes
Connection/Terminal TypeBox
Housing MaterialPolycarbonate
MCOV L-G420 V
MCOV N-G420 V
VPR L-G1500 V
VPR N-G1500 V
Width7.08 in
Height3.68 in
