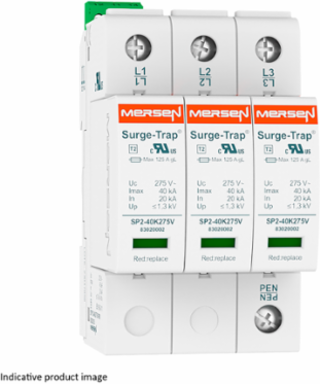

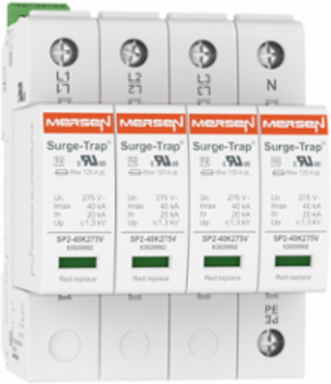

Mersen 83020103 Surge-Trap Type 2 SPD, 30kA, 750V, 3-Pole, Pluggable with Remote Indicators
- MPN: 83020103
- PPN: FER-83020103
CAD
$1447.79
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
STP T2 40 is the series of Type 2/Class II devices for discharging voltage surges, in accordance with EN/IEC 61643-11 and certified UL 1449 4th Ed. Suitable for the second stage of protection in supply distribution panels in which Type 1 protection devices are installed upstream, or for the first stage of protection in commercial or other applications not exposed to direct strikes and with no external lightning protection system.
Features
- TNS, TNC, TT and IT networks
- DIN-rail mountable, plug-in format
- Visual and remote end of life indicators
- Reversible chassis to allow cable entry from above or below
- Mechanically coded cartridges to avoid cartridge replacement errors
Documentation & Downloads
Specifications
Key Specifications
- Maximum discharge current (8/20μs)
- 40kA per phase
- Un(L-N/L-L)
- 48V, 60V, 120/208V, 230/400V, 277/480V, 400/690V & higher
- File UL
- E468946
- Min Operating Temp
- -40 °C
- Torque Rating
- 35.4 lb-in
- Response Time
- 25 ns
- Mcov L-L
- 1500 V
- Uc L-L
- 1500 V
- Up At In L-Pen
- ≤3.0 kV
- Vpr L-L
- 5000 V
- Product Line
- Surge-Trap® Pluggable STPT2 Series - 40kA
- Wire Type
- Rigid: 6…35mm² / Stranded: 6…25mm²
- Iec Spd Type
- Type 2 / Class II
- Max Back-Up Fuse
- 125 A gG
- Max Discharge Current Imax 8 20
- 30kA
- Replacement Plug L-N
- SP2-30K750V
Nominal discharge current (8/20μs)20kA per phase
Back-up fuse125 A gG
Max Operating Temp85 °C
Short Circuit Current Rating Sccr50 ... 100 kA
Short Circuit Withstand Isccr25 kA
Mcov L-G750 V
Nominal Operating Volt Rating Un400/690(IT)-690/1000(TNC) V
Uc L-Pen750 V
Vpr L-G2500 V
Country Of OriginES
Product BrandSurge-Trap®
Number Of Poles3-Pole
Housing MaterialPA66 CT1; V-0
Ac Or DcAC
Nominal Discharge Current15kA
System ConfigurationTNC. IT
