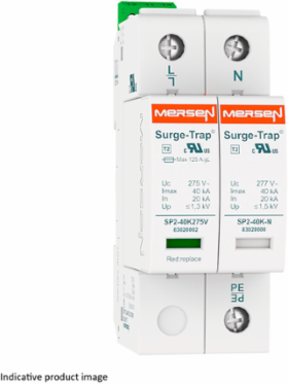

Mersen 83020115 Surge-Trap Type 2 SPD 40kA, 150V, 2-Pole, Pluggable, Remote Monitoring
- MPN: 83020115
- PPN: FER-83020115
CAD
$506.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
STP T2 40 is the series of Type 2/Class II devices for discharging voltage surges, in accordance with EN/IEC 61643-11 and certified UL 1449 4th Ed. Suitable for the second stage of protection in supply distribution panels in which Type 1 protection devices are installed upstream, or for the first stage of protection in commercial or other applications not exposed to direct strikes and with no external lightning protection system.
Features
- TNS, TNC, TT and IT networks
- DIN-rail mountable, plug-in format
- Visual and remote end of life indicators
- Reversible chassis to allow cable entry from above or below
- Mechanically coded cartridges to avoid cartridge replacement errors
Documentation & Downloads
Specifications
Key Specifications
- Maximum discharge current (8/20μs)
- 40kA per phase
- Un(L-N/L-L)
- 48V, 60V, 120/208V, 230/400V, 277/480V, 400/690V & higher
- File UL
- E468946
- Min Operating Temp
- -40 °C
- Short Circuit Withstand Isccr
- 25 kA
- Following Current Ifi
- 0,1 kA
- Mcov L-N
- 175 V
- Nominal Operating Volt Rating Un
- 120 V
- Uc N-Pe
- 277 V
- Up At In N-Pe
- ≤1.5 kV
- Vpr L-N
- 700 V
- Country Of Origin
- ES
- Product Brand
- Surge-Trap®
- Number Of Poles
- 2-Pole
- Housing Material
- PA66 CT1; V-0
- Ac Or Dc
- AC
- Nominal Discharge Current
- 20kA
- Replacement Plug N-Pe
- SP2-40K-N
Nominal discharge current (8/20μs)20kA per phase
Back-up fuse125 A gG
Max Operating Temp85 °C
Short Circuit Current Rating Sccr50 ... 100 kA
Response Time25 ns
Mcov L-G175 V
Mcov N-G277 V
Uc L-N175 V
Up At In L-N≤1 kV
Vpr L-G1200 V
Vpr N-G700 V
Product LineSurge-Trap® Pluggable STPT2 Series - 40kA
Wire TypeRigid: 6…35mm² / Stranded: 6…25mm²
Iec Spd TypeType 2 / Class II
Max Back-Up Fuse125 A gG
Max Discharge Current Imax 8 2040kA
Replacement Plug L-NSP2-40K150V
System ConfigurationTT. TNS
