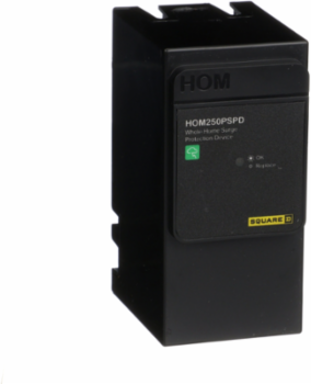

Square D HOM250PSPD Surge protection device, Homeline, whole home, 50kA, 120/240 VAC, 1 phase, 3 wire, SPD type 1
- MPN: HOM250PSPD
- UPC: 785901520290
- PPN: SCH-HOM250PSPD
CAD
$172.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Square D™ Load Center Surge Protective Devices (SPDs) are plug-in units designed for fast and straightforward installation. The surge suppressors use two pole spaces in a Load center. SPD are single phase and are rated for use in an indoor or outdoor enclosure. Ideal for residential and light commercial use, these SPDs provide a dependable first layer of surge protection. This is a plug on neutral surge protective device for Homeline load centers. It is designed to protect electrical service and major household appliances, excluding electronic devices. Designed for 3 wire 120/240 VAC single phase systems. Securing up to 50kA surge current per phase. This surge protection device is UL Listed.
Features

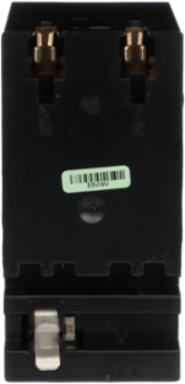

- This whole-house surge protective device is strictly designed for Square D Homeline load centers manufactured after 2014 that feature a plug-on neutral bar configuration. It snaps directly onto the panel's neutral bar, eliminating the need for pigtail wiring modifications, ensuring a perfect physical fit, and preserving valuable gutter space within your residential electrical panel.
- Engineered with a robust 50 kA peak surge current capacity per phase, this Type 1 SPD shields your entire home against major external transients like severe lightning strikes and utility switching events. It acts as a primary defense line, clamping dangerous high-voltage spikes down to safe levels before they can travel downstream to destroy sensitive household electronics or major appliances.

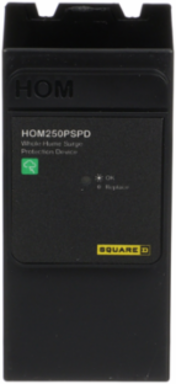

- Equipped with an integrated green LED diagnostics indicator, the unit provides instant visual confirmation of your system's operational status at a glance. If a catastrophic electrical event occurs and the internal, thermally fused metal oxide varistors (MOVs) sacrifice themselves to save your equipment, the LED turns off, immediately alerting you that the module needs to be replaced.
- This surge suppressor is fully cULus Listed to the rigorous UL 1449 4th Edition standards for Type 1 and Type 2 Surge Protective Devices, as well as CSA C22.2 certified. This ensures absolute compliance with strict local building codes and modern National Electrical Code (NEC) requirements for residential whole-home transient protection, giving you complete peace of mind.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States

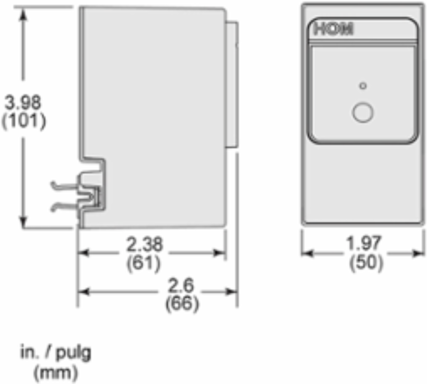

Depth66 mm
Important Information Attributes
- Persona Type Ids
- EU, EUA, LC, OM, SC
- Certificate Agency
- UL 1449:ed. 4, CSA C22.2 No 269.1
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.03983
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.1 kg CO2 eq., 0.063827
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Use Carbon Footprint
- 75.429
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2531
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- RESIDENTIAL
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Phase
- 1 phase
- Product Or Component Type
- surge protection device
- Returnability
- Yes
- Sustainable Packaging
- No
- Wiring Configuration
- 3-wire
- Pep Verification Date
- 2017-06-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- referent product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Mexico
- Energy Model - Use [B6]
- Electricity mix; AC; consumption mix, at consumer; 120V; US
- Recyclability Potential, In %
- 41
- Width Nominal
- 50 mm
- [Ue] Rated Operational Voltage
- 120/240 V AC
- Short-circuit Protection
- 22 kA
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Air Pollution (M3) Total Life Cycle
- 6413.2
- Air Pollution (M3) Distribution [A4]
- 2.325
- Air Pollution (M3) End Of Life [C1-c4]
- 1.9407
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4]
- 0.7908
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]
- 0.2497
- Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]
- 75.429
- Hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 2.0167
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 11.533
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 954.47
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 1015.5
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 60.985
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 954.47
- Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 60.985
- Water Pollution (M3) Manufacturing [A1-a3]
- 10.384
- Water Pollution (M3) Operational Energy Use [B6]
- 3718.6
Persona Type NamesEnd User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
Carbon Footprint Of The Distribution Phase [A4]0.056278, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0050837, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]75 kg CO2 eq., 75.429
Local Publishable Date2026-03-25
Stocking FlagN
Device TypeSurge Protection and Power Conditioning - Surge Protection Devices
TraceabilityNo
Weee ScopeIn
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI1706014EN
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationResidential
Enclosure MaterialBlack Plastic
Nominal Discharge Current20 kA
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHomeline
Software VersionEIME v5.5
Total Lifecycle Carbon Footprint76 kg CO2 eq.
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect during 20 years against direct or indirect effects of lightning or against transient overvoltages electrical equipements connected to electrical networks with a rated operational voltage up to 1000 V AC or 1500 V DC.
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime, In Kwh108.624
Energy Model - Installation [A5]Electricity mix; AC; consumption mix, at consumer; 120V; US
Energy Model - End Of Life [C1-c4]Electricity mix; AC; consumption mix, at consumer; 120V; US
Height Nominal101 mm
[Uc] Maximum Continuous Operating Voltage150 V
Connections - Terminalsplug in phase and neutral
Carbon Footprint (Kg Co2 Eq, Total Life Cycle)75.594
Package Weight(Lbs)231.332 g
Warranty (In Months)18
Air Pollution (M3) Manufacturing [A1-a3]2.7264
Air Pollution (M3) Operational Energy Use [B6]6405.6
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle1195.9
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]1193.9
Global Warming (Kg.Equivalent.Co2) Total Life Cycle75.594
Hazardous Waste Disposed Of (Kg) Total Life Cycle2.4106
Non-hazardous Waste Disposed Of (Kg) Total Life Cycle11.538
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle956.52
Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle1017.5
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle60.988
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle956.52
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle60.988
Water Pollution (M3) Total Life Cycle3741.5
Water Pollution (M3) Distribution [A4]9.2565
Water Pollution (M3) End Of Life [C1-c4]2.6659
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 75.594
- Circularity Profile
- ENVEOLI1706014EN
- Nema Degree Of Protection
- NEMA 2
- Packaging Without Single Use Plastic
- Yes
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent external review
Take BackNo
Mercury FreeYes
Ambient Air Temperature For Operation65-65 °C
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Pep Verification Date2017-06-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Phase
- 1 phase
- Range Of Product
- Homeline
Product Or Component Typesurge protection device
Surge Protection And Filtering Attributes
- Surge Current
- 50 kA
