Schneider Electric

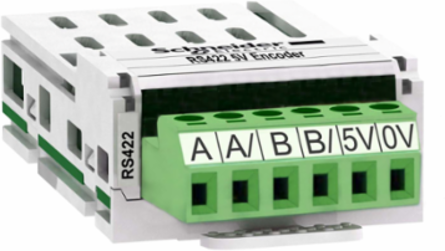

Schneider Electric VW3A3620 speed monitoring module, Altivar, 5V

speed monitoring module, Altivar, 5V
  • MPN: VW3A3620
  • PPN: SCH-VW3A3620

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$288.12/ EA

Description

speed monitoring module, Altivar, 5V

Specifications

Offer Sustainability

China Rohs Regulation
X
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP2010018EN
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold

Complementary

Product Compatibility
ATV32 >= V1.8)
Input Signal
TTL
Net Weight
0.3 kg
Protection Typeoverload protection || short-circuit protection
Electrical Connectionterminal 1.5 mm² AWG 16), encoder, 200 mA
Maximum Operating Frequency250 kHz

Specifications

Number Of Pulses Per Revolution
3600 ATV32
Range Compatibility
Altivar 32 || Altivar Machine ATV320
[Us] Rated Supply Voltage
5 V 5-5.5 V)
Range Of ProductAltivar
Product Or Component Typeencoder interface module

Downloads
