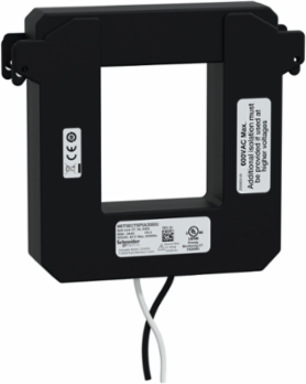

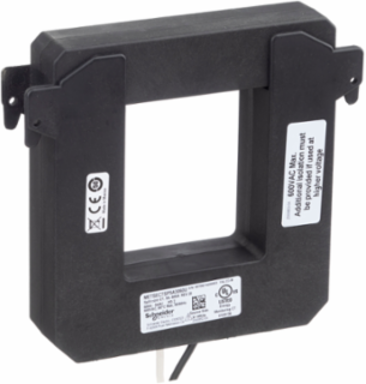

Schneider Electric METSECTSP5A3080U Split Core Current Transformer 800A/5A Output, UL Certified

MPN: METSECTSP5A3080U
PPN: SCH-METSECTSP5A3080U

$222.25

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Split Core Current Transformer from Schneider Electric offers a reliable solution for accurately measuring electrical currents in various applications. With an output of 800A/5A, this UL Certified transformer ensures both safety and efficiency in monitoring electrical systems. Its split-core design allows for easy installation, making it ideal for retrofitting into existing setups without the need for a complete system overhaul. This current transformer is an essential component for those requiring precise current measurements in their electrical infrastructure.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico, United States

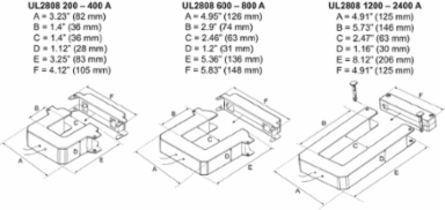

Width	5.83 in

Height	5.36 in
Depth	1.12 in

Important Information Attributes

Network Frequency	50 Hz, 60 Hz
Carbon Footprint Of The End-of-life Phase [C1 To C4]	2 kg CO2 eq., 2.004054709346391
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	10 kg CO2 eq., 9.509757516099322
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Serviceability	No
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Product Kit Identifier	N
Current Transformer Type	split core
Energy Efficiency Optimized	False
Insulation	basic insulation 600 V ACreinforced insulation 300 V AC
Mounting Location	indoor use only
Primary Operational Current	800 A
Product Or Component Type	current transformer
Returnability	Yes
Software Version	v6.2.4
Total Lifecycle Carbon Footprint	318 kg CO2 eq.
Pep Code	ENVPEP2511019_V1-EN
Pep Verification Date	2025-12-26
Psr Version	PSR-0005-ed3-2023 06 06
Data Source	referent product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Low voltage; 2020; Mexico, MX
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %	69
Height Useful	total: 5.36 in
Width Real	total: 5.83 in
Accessory / Separate Part Category	measurement accessory
Package Weight(Lbs)	1.446 kg
Warranty (In Months)	18
Customs Code	8504312000

Carbon Footprint Of The Distribution Phase [A4]	0.7830764324764946, 0.8 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.02087952079153272, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	305 kg CO2 eq., 305.4533964695764
Local Publishable Date	2025-09-16
Stocking Flag	Y
Device Type	Relay, Control & Measurement - measuring, monitoring device
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2511019_V1-EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2508
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Current Transformer Ratio	800/5
Electrical Connection	8 ft 16 AWG flying lead
Installation Category	III
Measurement Accuracy	1 %
Network Type	AC
Product Availability	Stock - Normally stocked in distribution facility
Range	PowerLogic
Secondary Current	5 A
Sustainable Packaging	No
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
Functional-unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	635.1
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
Height Nominal	internal: 2.9 in
Width Nominal	internal: 2.46 in
Certificate Agency	UL
Nbr. Of Units In Pkg.	1
Take-back	No
Materials For Recycling (Kg) End Of Life [C1-c4]	0.8428

Environment Attributes Main

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	317.77116464829015
Circularity Profile	ENVEOLI2511019_V1-EN
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Code	ENVPEP2511019_V1-EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Operating Altitude	<= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Ambient Air Temperature For Operation	-15-60 °C-15-60 °C
Environmental Disclosure	ENVPEP2511019_V1-EN
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Relative Humidity	0-95 % non condensing
Pep Verification Date	2025-12-26
Psr Version	PSR-0005-ed3-2023 06 06
