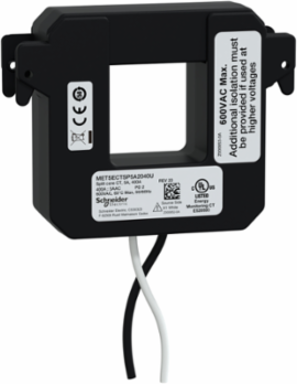

Schneider Electric METSECTSP5A2040U Split Core Current Transformer 400A, 5A Output, 1.12 Inch Depth
- MPN: METSECTSP5A2040U
- PPN: SCH-METSECTSP5A2040U
CAD
$163.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric METSECTSP5A2040U Split Core Current Transformer is engineered to provide high-performance current sensing in a compact design. With a primary current rating of 400A and a 5A output, it ensures accurate measurements for various applications. Its convenient 1.12-inch depth allows for easy integration into existing systems, making it an ideal choice for efficient monitoring and management of electrical power. This transformer is essential for professionals looking for reliability and precision in current measurement solutions.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States

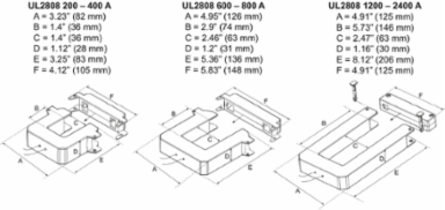

- Width
- 4.12 in
Height3.25 in
Depth1.12 in
Important Information Attributes
- Network Frequency
- 50 Hz, 60 Hz
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.9 kg CO2 eq., 0.8580402097085342
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 5 kg CO2 eq., 4.947903587875528
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Serviceability
- No
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Current Transformer Type
- split core
- Energy Efficiency Optimized
- False
- Insulation
- basic insulation 600 V ACreinforced insulation 300 V AC
- Mounting Location
- indoor use only
- Primary Operational Current
- 400 A
- Product Or Component Type
- current transformer
- Returnability
- Yes
- Software Version
- v6.2.4
- Total Lifecycle Carbon Footprint
- 238 kg CO2 eq.
- Pep Code
- ENVPEP2511018_V1-EN
- Pep Verification Date
- 2025-12-26
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- referent product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Mexico, MX
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In %
- 53
- Height Useful
- total: 3.25 in
- Width Real
- total: 4.12 in
- Accessory / Separate Part Category
- measurement accessory
- Package Weight(Lbs)
- 840 g
- Warranty (In Months)
- 18
- Customs Code
- 8504312000
Carbon Footprint Of The Distribution Phase [A4]0.4339005180061662, 0.4 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.01766293577524639, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]232 kg CO2 eq., 231.7232662872648
Local Publishable Date2025-09-16
Stocking FlagY
Device TypeRelay, Control & Measurement - measuring, monitoring device
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2511018_V1-EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2508
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Current Transformer Ratio400/5
Electrical Connection8 ft 16 AWG flying lead
Installation CategoryIII
Measurement Accuracy1 %
Network TypeAC
Product AvailabilityStock - Normally stocked in distribution facility
RangePowerLogic
Secondary Current5 A
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionOther switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh481.8
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominalinternal: 1.4 in
Width Nominalinternal: 1.4 in
Certificate AgencyUL
Nbr. Of Units In Pkg.1
Take-backNo
Materials For Recycling (Kg) End Of Life [C1-c4]0.2744
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-70 °C, -40-70 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 237.9807735386303
- Circularity Profile
- ENVEOLI2511018_V1-EN
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2511018_V1-EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Operating Altitude<= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Ambient Air Temperature For Operation-15-60 °C-15-60 °C
Environmental DisclosureENVPEP2511018_V1-EN
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Relative Humidity0-95 % non condensing
Pep Verification Date2025-12-26
Psr VersionPSR-0005-ed3-2023 06 06
General Attributes
- Product Or Component Type
- current transformer
ETIM
- ETIM 8
- EC002048
ETIM 9EC002048
