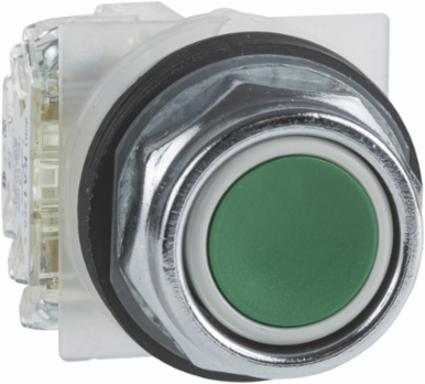

Schneider Electric 9001KR1GH5 Harmony 30mm Green Metal Push Button, Spring Return, IP66
- MPN: 9001KR1GH5
- UPC: 785901033349
- PPN: SCH-9001KR1GH5
CAD
$77.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Harmony 9001K, modular flush green push button with full guard has 2 positions, operates with spring return mechanism. It has a chromium-plated metal bezel, has 1 x NO contact and uses screw-clamp terminals. This flush push button with full guard provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Features
- Featuring a rugged chromium-plated metal bezel and a robust 30mm mounting footprint, this Schneider Electric Harmony 9001K device is engineered to endure severe mechanical impacts and continuous industrial use. It delivers exceptional oil-tight, dust-tight, and water-tight sealing that complies fully with NEMA 1/2/3/3R/4/6/12/13 standards, ensuring your control stations operate reliably despite exposure to cutting fluids, coolant washdowns, and airborne grime.
- Outfitted with a durable, flexible green rubber cap surrounded by a protective metal guard ring, this push button prevents external debris, freezing rain, and packed dirt from jamming the mechanical actuator. The guarded design simultaneously prevents accidental, unintended machine activation from dropped tools or passing personnel, making it the ideal "Start" control choice for exposed aggregate systems, outdoor material handling conveyors, and recycling facilities.
- This specific part number delivers a fully integrated assembly including the rugged 30mm operator body, the guarded green booted button head, and the terminal contact block in a single factory package. By eliminating the logistics hassle of ordering, sorting, and fastening separate sub-components, it drastically accelerates control panel building timelines and minimizes on-site assembly errors.
- Built with deep, finger-safe screw-clamp terminals that conform to global safety standards, this device provides reliable wire retention for a broad range of control circuit conductors. The heavy-duty terminal screws resist loosening caused by nearby structural vibrations or repetitive machine cycling, ensuring a low-resistance connection that maintains signal integrity to your PLCs, motor starters, and automation relays.
Documentation & Downloads
Specifications
Key Specifications
- Operator Additional Information
- metal guard
- Type Of Operator
- spring return
- Operator Profile
- green flush, unmarked
Range Of ProductHarmony 9001K
Product Or Component Typepush-button
Device Short Name9001K
Complementary
- Terminals Description Iso N°1
- (13-14)NO
- Contacts Material
- silver alloy contacts
- Mounting Diameter
- 30 mm
- [Ith] Conventional Free Air Thermal Current
- 10 A
- Shape Of Signaling Unit Head
- octagonal
- Net Weight
- 0.121 kg
- Size
- 30 mm
- Device Presentation
- complete product
- Contacts Type And Composition
- 1 NO
- Bezel Material
- metal
- Connections - Terminals
- screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
- Mechanical Durability
- 5000000 cycles
- Operating Position
- any position
- Cad Overall Width
- 48 mm
- Cad Overall Depth
- 56 mm
Short-Circuit Protection10 A cartridge fuse IEC 60947-5-1
Positive Openingwithout
Operator Profileflush
Rated Breaking Capacity3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
Cap/Operator Or Lens Colourgreen
[Uimp] Rated Impulse Withstand Voltage2.5 kV IEC 60947-1
Cad Overall Height45 mm
[Icm] Rated Short-Circuit Making Capacity12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
[Ui] Rated Insulation Voltage250 V 3)IEC 60947-1
[Ie] Rated Operational Current3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA
Contact Operationstandard
Type Of Operatorspring return
Tightening Torque0.8-0.8 N.m IEC 60947-1
Shape Of Screw Headcross slotted
Environment
- Product Certifications
- NEMA || UL 508
- Standards
- UL 508 || JIS C 852 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C 4520 || EN/IEC 60947-5-4 || CSA C22.2 No 14
- Vibration Resistance
- 7 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Electrical Shock Protection Class
- class II IEC 61140
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn IEC 60068-2-27
Ip Degree Of ProtectionIP66 IEC 60529
Nema Degree Of ProtectionNEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121006EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
