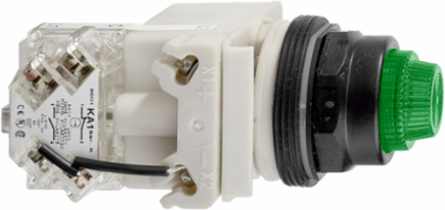

Schneider Electric 9001SKT38LGG31 Harmony Push-to-Test Pilot Light 30mm Green LED 120V IP66
Schneider Electric 9001SKT38LGG31 Harmony Push-to-Test Pilot Light 30mm Green LED 120V IP66
- MPN: 9001SKT38LGG31
- UPC: 785901044482
- PPN: SCH-9001SKT38LGG31
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$253.55/ EA
Description
This Harmony 9001SK, push-to-test illuminated green pilot light with integral LED and plastic fresnel is supplied with 110 V AC/DC. It has a double insulated plastic bezel. This illuminated green push-to-test pilot light with integral LED provides an ergonomic and visual interface for your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Specifications
Environment
- Product Certifications
- UL 508 || NEMA
- Standards
- IEC 60947-5-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || JIS C 852 || CSA C22.2 No 14 || IEC 60947-1 || JIS C8201-1
- Vibration Resistance
- 7 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Electrical Shock Protection Class
- class II IEC 61140
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn IEC 60068-2-27
Ip Degree Of ProtectionIP66 IEC 60529
Nema Degree Of ProtectionNEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121113EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI121109EN
Complementary
- [Us] Rated Supply Voltage
- 120 V
- Short-Circuit Protection
- 10 A cartridge fuse IEC 60947-5-1
- Contacts Material
- silver alloy contacts
- Light Block Supply
- direct
- Mounting Diameter
- 30 mm
- Rated Breaking Capacity
- 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
- Cap/Operator Or Lens Colour
- green
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV IEC 60947-1
- Device Presentation
- complete product
- [Icm] Rated Short-Circuit Making Capacity
- 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA
- [Ui] Rated Insulation Voltage
- 250 V 3)IEC 60947-1
- [Ie] Rated Operational Current
- 0.55 A 125 V, DC-13, A600-Q600 NEMA
- Light Source Colour
- green
- Operating Position
- any position
- Shape Of Screw Head
- cross slotted
[Us] Rated Supply Voltage120 V AC/DC
Lens Materialpolycarbonate
Light SourceLED
Positive Openingwithout
[Ith] Conventional Free Air Thermal Current10 A
Shape Of Signaling Unit Headoctagonal
Net Weight0.195 kg
Size30 mm
Lens Typefresnel
Contacts Type And Composition1 C/O
Bezel Materialplastic
Connections - Terminalsscrew clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
Mechanical Durability5000000 cycles
Tightening Torque0.8-0.8 N.m IEC 60947-1
Bulb BaseBA 9s
Specifications
- Range Of Product
- Harmony 9001SK
- Product Or Component Type
- push-to-test pilot light
- Device Short Name
- 9001SK
Type Of Operatorspring return
Operator Profilegreen projecting, unmarked
