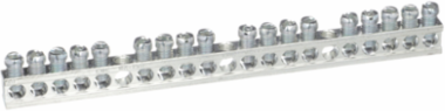

Square D PK18GTA Loadcentre Equipment Ground Bar Assembly, 18 Connectors

MPN: PK18GTA
UPC: 785901026426
PPN: SCH-PK18GTA

$37.38

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

By grounding the system, it helps prevent electrical shock hazards and ensures that stray electrical currents are safely directed to the earth. It acts as a centralized location where all ground wires from branch circuits are securely connected. It provides a neat and organized way to terminate multiple ground conductors, making the panel easier to inspect and maintain. This is a Ground Lug kit compatible for both QO and Homeline Load Center. It has 18 number of circuits which accepts (1) 14 4 or (2) 14 or 12AWG copper or (1) 12 4 or (2) 12 or 10AWG aluminum.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States

Depth	0.312 in

Physical Attributes

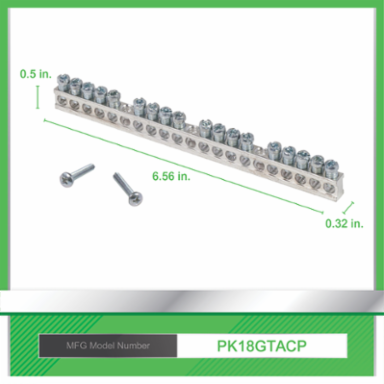

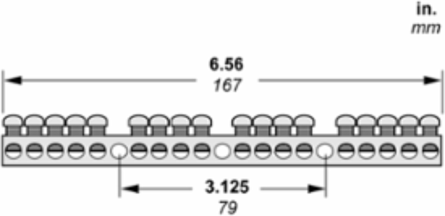

Bar Length	167 mm

Complementary Attributes

Maximum Length Of Segment	80 mm

Important Information Attributes

Persona Type Ids	EU, EUA, LC, OM, SC
Tightening Torque	25 lb.in, 12 AWG...10 AWG, aluminium30 lb.in, mounting screw 30 lb.in, 20 lb.in, 14 AWG...10 AWG, copper20 lb.in, 12 AWG...10 AWG, aluminium35 lb.in, 6 AWG...4 AWG25 lb.in, 8 AWG, 25 lb.in, 14 AWG...12 AWG, copper
Local Publishable Date	2026-07-14
Stocking Flag	N
Weee Scope	Out
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	RESIDENTIAL
Product Kit Identifier	N
Energy Efficiency Optimized	False
Product Availability	Stock - Normally stocked in distribution facility
Provided Equipment	2 screw
Returnability	Yes
Height Nominal	.437 in
Package Weight(Lbs)	73 g
Warranty (In Months)	18

Persona Type Names	End User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2531
China Rohs In Scope	No
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Market Segmentation	Residential
Awg Gauge	14 AWG...4 AWG copper12 AWG...4 AWG aluminium
Number Of Connectors	18
Product Or Component Type	bar
Range Of Product	QO
Sustainable Packaging	No
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536904000

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
