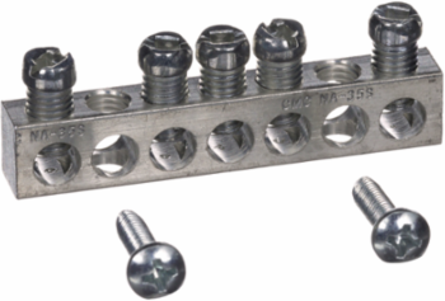

Square D PK5GTA QO Load Center Ground Bar Assembly, 5 Connections, 2.25 Inch Long
- MPN: PK5GTA
- UPC: 785901263654
- PPN: SCH-PK5GTA
CAD
$36.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
By grounding the system, it helps prevent electrical shock hazards and ensures that stray electrical currents are safely directed to the earth. It acts as a centralized location where all ground wires from branch circuits are securely connected. It provides a neat and organized way to terminate multiple ground conductors, making the panel easier to inspect and maintain. This is a Ground Lug kit compatible for both QO and Homeline Load Center. It has 5 number of circuits which accepts (1) 14 4 or (2) 14 or 12AWG copper or (1) 12 4 or (2) 12 or 10AWG aluminum.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth0.312 in
Physical Attributes

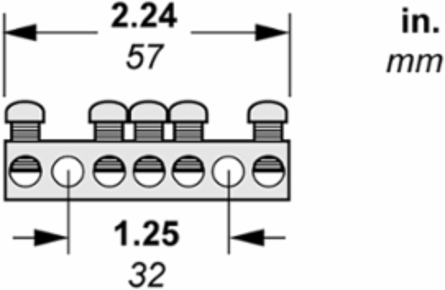

- Bar Length
- 57 mm
Complementary Attributes
- Maximum Length Of Segment
- 32 mm
Important Information Attributes
- Persona Type Ids
- EU, LC, OM
- Tightening Torque
- 25 lb.in, 12 AWG...10 AWG, aluminium30 lb.in, mounting screw 30 lb.in, 20 lb.in, 14 AWG...10 AWG, copper20 lb.in, 12 AWG...10 AWG, aluminium35 lb.in, 6 AWG...4 AWG25 lb.in, 8 AWG, 25 lb.in, 14 AWG...12 AWG, copper
- Local Publishable Date
- 2026-07-14
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2531
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Residential
- Awg Gauge
- 14 AWG...4 AWG copper12 AWG...4 AWG aluminium
- Number Of Connectors
- 5
- Product Or Component Type
- bar
- Range Of Product
- QO
- Sustainable Packaging
- No
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538906000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdRESIDENTIAL
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Product AvailabilityStock - Normally stocked in distribution facility
Provided Equipment2 screw
ReturnabilityYes
Height Nominal.437 in
Package Weight(Lbs)23 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- bar
- Range Of Product
- QO
Provided Equipment2 screw
ETIM
- ETIM 8
- EC000329
ETIM 9EC000329
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
