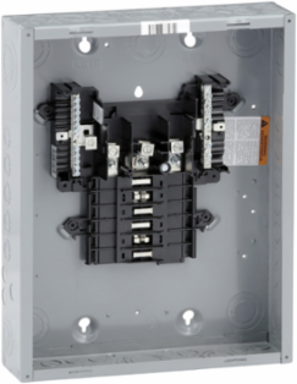

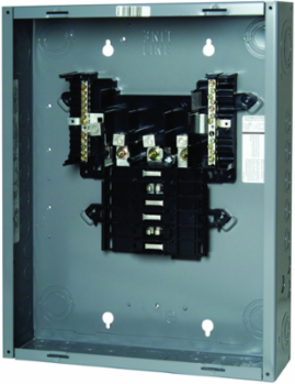

Square D QO312L125G Load center, QO, 3 phase, 12 spaces, 12 circuits, 125A fixed main lugs, NEMA1, gnd bar

Load center, QO, 3 phase, 12 spaces, 12 circuits, 125A fixed main lugs, NEMA1, gnd bar
Load center, QO, 3 phase, 12 spaces, 12 circuits, 125A fixed main lugs, NEMA1, gnd bar
Load center, QO, 3 phase, 12 spaces, 12 circuits, 125A fixed main lugs, NEMA1, gnd bar
Load center, QO, 3 phase, 12 spaces, 12 circuits, 125A fixed main lugs, NEMA1, gnd bar
  • MPN: QO312L125G
  • UPC: 785901295037
  • PPN: SCH-QO312L125G

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$664.35/ EA

Description

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 12 spaces and 12 circuits. This system provides 125A fixed main lugs in a NEMA 1 enclosure. It also includes a ground bar, and is UL rated.

Specifications

Complementary Attributes

Rated Current
125 A
Line Rated Current
125 A
Ue Rated Operational Voltage208Y/120 V AC, 240/120 V delta AC, 240 V delta AC

Important Information Attributes

Persona Type Ids
EU, EUA, LC, OM, SC
Cover Type
order separately
Electrical Connection
lugs
Material
tin plated copper: busbar
Phase
3 phase 4 wires, 3 phase 3 wires
Tightening Torque
main lugs 50 lb.in, AWG 6...AWG 2/0, aluminium/copper, Cover 20 lb.in
Carbon Footprint Of The End Of Life Phase C1 To C4
0.5 kg CO2 eq., 0.466211243
Carbon Footprint Of The Manufacturing Phase A1 To A3
25 kg CO2 eq., 24.962467208
Local Data Status
Publishable
Return Indicator
Y
Stock Policy
2
H And D Subrange
COM
H And D Enrichment Function
ENCLOSURES
H And D Enrichment Class 4
Three-phase main lugs only load center
Weee Product Category
5
Eoli Availability Display
No need of specific recycling operations
Reach Full Compliance Status Id
CONTAINS_SVHC
Rohs Eur In Scope
Yes
Rohs Eur Conformity Date
2531
China Rohs In Scope
No
With Recycled Cardboard
No
Product Contributes To Saved And Avoided Emissions
No
Tier
2
Function Option
Standard
Market Segmentation
Commercial
Awg Gauge
AWG 6...AWG 2/0 aluminium/copper
Enclosure Material
welded sheet steel
Number Of Circuits
12
Range Of Product
QO
Short Circuit Current
65 kA
Surface Finish
baked enamel Gray
Total Lifecycle Carbon Footprint
27 kg CO2 eq.
Warranty In Months
18
Database Version
2022-01
Pcr Version
PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep
Independent external review
Functional-unit Description
Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 1000mm x362mm x 95mm, that is certified for UL 67.
Functional-unit Unit
unit
Energy Model - Manufacturing [A1-a3]
Energy model used: Tlaxcala Mexico
Energy Model - Use [B6]
Electricity mix; AC; consumption mix, at consumer; 120V; US
Offer Owner Code
190788
Height Nominal
455 mm
Certificate Agency
UL Listed
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
1.0634
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
1.1758
Water Pollution (M3) Operational Energy Use [B6]
4.3059
Persona Type NamesEnd User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
Device Compositiongrounding bar included (not installed)
Load Center TypeFixed Mains (lugs)
Number Of Spaces12, 12
Product Or Component TypeLoad Center
Carbon Footprint Of The Distribution Phase A41.6868132417, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.0201937601, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60.1 kg CO2 eq., 0.087341
Local Publishable Date2026-03-26
Stocking FlagN
H And D DomainSafety
H And D Enrichment Assignmentno
H And D Enrichment Class 3Load centers (equipped)
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Market Segmentation IdCOMMERCIAL
Product Kit IdentifierN
Box Number6
Energy Efficiency OptimizedFalse
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Software VersionEIME v5.9.4
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP2212003EN
Pep Verification Date2025-08-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Installation [A5]Electricity mix; AC; consumption mix, at consumer; 120V; US
Energy Model - End Of Life [C1-c4]Electricity mix; AC; consumption mix, at consumer; 120V; US
Pn1
Width Nominal362 mm
Air Pollution (M3) Operational Energy Use [B6]7.4172
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]1.1052
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]1.1052

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Nema Degree Of Protection
NEMA 1 indoor enclosure
Recycled Metal Content At Cr Level
0 %
Mercury Free
Yes
Environmental Disclosure
ENVPEP2212003EN
Packaging Made With Recycled Cardboard
No
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Pep Verification Date
2025-08-01
Psr Version
PSR-0005-ed2-EN-2016 03 29
Ambient Air Temperature For Operation-5 °C, -5 °C, 40 °C
Take BackNo
Toxic Heavy Metal FreeYes
Carbon Footprint27.2230264528
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2212003EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent external review

General Attributes

Phase
3 phase 4 wires, 3 phase 3 wires
Range Of Product
QO
Product Or Component TypeLoad Center

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months

Specifications

Country of Origin
United States
