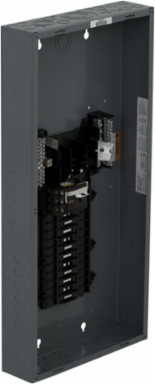

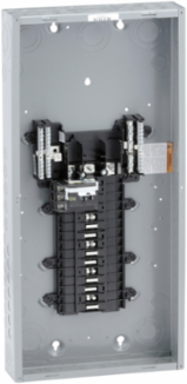

Square D QO327M100 Load center, QO, 3 phase, 27 spaces, 27 circuits, 100A convertible main breaker, NEMA1
Square D QO327M100 Load center, QO, 3 phase, 27 spaces, 27 circuits, 100A convertible main breaker, NEMA1
- MPN: QO327M100
- UPC: 785901295464
- PPN: SCH-QO327M100
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$907.85/ EA
Description
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 27 spaces and 27 circuits. This system provides a 100A convertible main breaker in a NEMA 1 enclosure. This product is UL rated.
Specifications
Complementary Attributes
- Ue Rated Operational Voltage
- 208Y/120 V AC, 240/120 V delta AC, 240 V delta AC
Line Rated Current100 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM
- Phase
- 3 phase 4 wires, 3 phase 3 wires
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0.9 kg CO2 eq., 0.8607995273
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 59 kg CO2 eq., 59.2448088235
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- H And D Subrange
- COM
- H And D Enrichment Function
- ENCLOSURES
- H And D Enrichment Class 4
- Three-phase convertible mains load center
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2532
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Market Segmentation Id
- COMMERCIAL
- Product Kit Identifier
- N
- Box Number
- 9
- Device Composition
- grounding bar (ordered separately)
- Enclosure Material
- welded sheet steel
- Load Center Type
- main breaker
- Number Of Circuits
- 27
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- QO
- Short Circuit Current
- 25 kA
- Surface Finish
- baked enamel Gray
- Tightening Torque
- Cover 20 lb.in
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP2212001EN
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- Electricity mix; AC; consumption mix, at consumer; 120V; US
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; consumption mix, at consumer; 120V; US
- Pn
- 1
- Width Nominal
- 362 mm
- Air Pollution (M3) Operational Energy Use [B6]
- 7.4172
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 1.1052
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 1.1052
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer
Carbon Footprint Of The Distribution Phase A42.7752732143, 3 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.0064781384, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60.1 kg CO2 eq., 0.087341
Local Publishable Date2026-03-26
Stocking FlagN
H And D DomainSafety
H And D Enrichment Assignmentno
H And D Enrichment Class 3Load centers (equipped)
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Market SegmentationCommercial
Awg GaugeAWG 4...AWG 2/0 aluminium/copper
Cover Typeorder separately
Electrical Connectionlugs
Energy Efficiency OptimizedFalse
Materialtin plated copper: busbar
Number Of Spaces27
Product Or Component TypeLoad Center
ReturnabilityYes
Software VersionEIME v5.9.4
Sustainable PackagingNo
Total Lifecycle Carbon Footprint63 kg CO2 eq.
Warranty In Months18
Database Version2022-01
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 858mm×361mm×95mm, comply with UL 67 and CSA22.2 with an available offer:& 10•Suitable for use on 120/240 Vac and 48 Vdc systems& 10•Rated 30 to 400 amps 2 to 60 circuits& 10•3/4" circuit breaker width& 10•Single and three phase
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Energy model used: Lexington
Energy Model - Use [B6]Electricity mix; AC; consumption mix, at consumer; 120V; US
Offer Owner Code190788
Height Nominal758 mm
Certificate AgencyUL Listed
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]1.0634
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]1.1758
Water Pollution (M3) Operational Energy Use [B6]4.3059
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2212001EN
- Nema Degree Of Protection
- NEMA 1 indoor enclosure
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2212001EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Operation-5 °C, -5 °C, 40 °C
Recycled Metal Content At Cr Level0 %
Carbon Footprint62.9747007036
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Phase
- 3 phase 4 wires, 3 phase 3 wires
- Range Of Product
- QO
Product Or Component TypeLoad Center
ETIM
- ETIM 8
- EC000214
ETIM 9EC000214
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- United States
