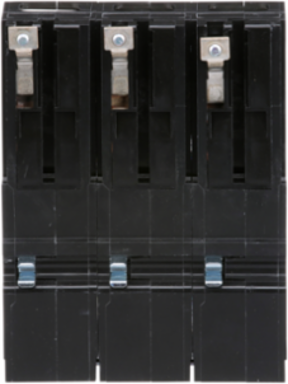

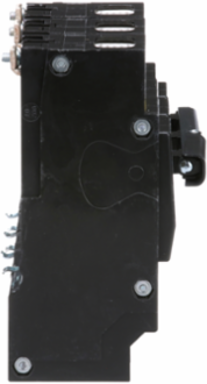

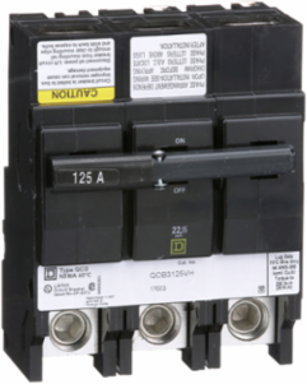

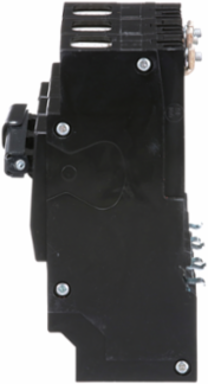

Schneider Electric QOB3125VH Mini Circuit Breaker 125A 3 Pole 22kA Bolt-On Mount
Schneider Electric QOB3125VH Mini Circuit Breaker 125A 3 Pole 22kA Bolt-On Mount
- MPN: QOB3125VH
- UPC: 785901065470
- PPN: SCH-QOB3125VH
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$931.12/ EA
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 125A at 120/240VAC. This unit provides 22kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
Specifications
- Current Rating
- 125 A
- Interrupt Rating
- 22 kA
- Tightening Torque
- 5.6 N.m
- Electrical Connection
- Box lugs
- Height
- 145 mm (5.71 in)
- Depth
- 124 mm (4.88 in)
- Circuit Breaker Type
- Standard
- Ambient Air Temperature for Operation
- 40 °C (104 °F)
- Range Of Product
- QO
- Poles Description
- 3P
- Product Or Component Type
- miniature circuit-breaker
- Mercury Free
- Yes
Voltage120/240 V AC
Number of Poles3
Mounting TypeBolt-on
Wire SizeAWG 4...300 kcmil copper or aluminum
Width114 mm (4.49 in)
Net Weight0.435 kg (0.96 lb)
CertificationsUL Listed, CSA Certified
Number Of Spaces Required6
Circuit Breaker Applicationnot rated
Breaking Capacity22 kA 120/240 V AC 50/60 Hz
Halogen Content PerformanceHalogen free product
Rohs ComplianceCompliant with Exemptions
