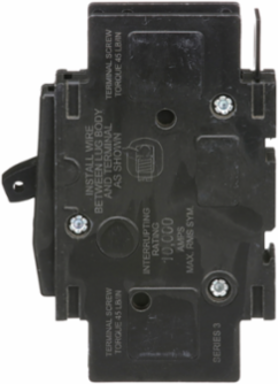

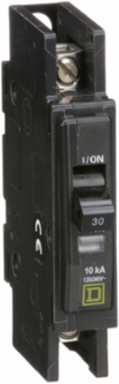

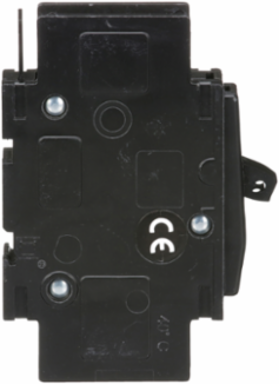

Square D QOU130 Mini Circuit Breaker 30A 1 Pole 120/240V AC 10kA
- MPN: QOU130
- UPC: 785901418566
- PPN: SCH-QOU130
CAD
$127.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
QO™ and QOU Miniature Circuit Breakers, QOU130, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit.
Documentation & Downloads
Specifications
Additional
- Amperage
- 30 A
- Interrupting Capacity
- 10 kA
- Circuit Breaker Application
- HACR rated
- Mounting Mode
- unit mount
- Height
- 4.05 in (102.87 mm)
- Depth
- 2.95 in (74.93 mm)
- Product Certifications
- CSA, UL listed, IEC
- Toxic Heavy Metal Free
- Yes
- REACH
- Contains SVHC above threshold
- China RoHS Compliance
- Out of China RoHS scope
- Range Of Product
- QOU
- Circularity Profile
- N/A
Voltage120/240 V AC, 120 V AC, 48 V DC
Circuit Breaker Typestandard
Electrical Connectionslotted box lugs, line side and load side
AWG GaugeAWG 14 to AWG 2 aluminum/copper
Width0.75 in (19.05 mm)
Tightening Torque45 lbf.in (5.08 N.m)
Halogen ContentHalogen free
Mercury FreeYes
EU RoHS ComplianceCompliant with Exemptions
Sustainable Offer StatusGreen Premium product
Product Or Component Typeminiature circuit-breaker
