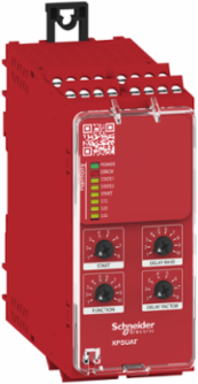

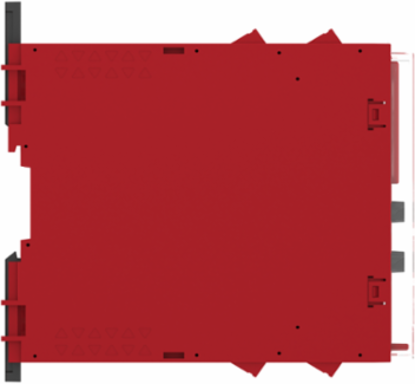

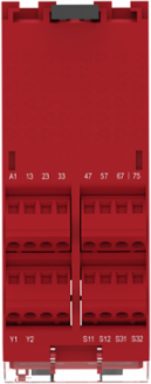

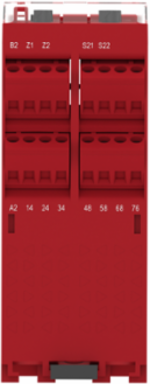

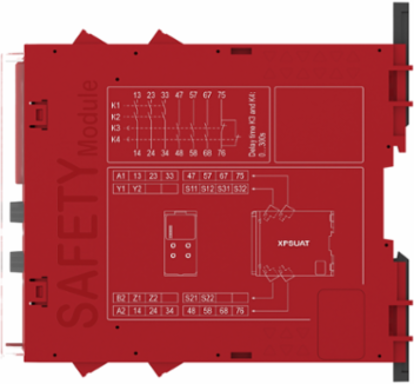

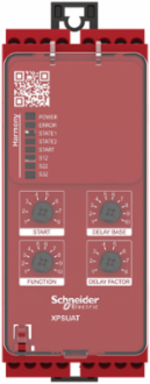

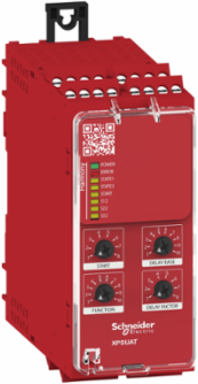

Schneider Electric XPSUAT13A3AP safety module, Harmony XPSU, Cat4, features XPSUAK with delayed outputs, 24V AC or DC, screw
Schneider Electric XPSUAT13A3AP safety module, Harmony XPSU, Cat4, features XPSUAK with delayed outputs, 24V AC or DC, screw
- MPN: XPSUAT13A3AP
- PPN: SCH-XPSUAT13A3AP
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$760.34/ EA
Description
This safety relay is designed for monitoring Emergency stop, Guard switch, Magnetic switch, Proximity safety switch, PNP, NPN sensor, RFID safety switch, Safety light curtain or Sensing mat/edges. The safety relay is powered with 24V AC/DC, and equipped with a screw removable terminal block. This universal safety module embeds pre-defined safety functions, or selectable safety functions via rotary selectors. This safety relay embeds 2 positive 1 negative safety inputs, 4 ON/OFF configurable pulsed outputs, 3 NO immediate, 3 NO configurable, 1 NC configurable safety outputs, 2 solid state diagnostic outputs. The maximum safety level achieved by this safety relay is PLe/Category 4 conforming to ISO 13849-1, SILCL 3 conforming to IEC 62061, SIL 3 conforming to IEC 61508. This safety relay weighs 0,350kg. Its dimensions are 45mm (Width) x 120mm (Depth) x 100mm (Height). This safety relay weighs 0,350kg. Its dimensions are 45mm (Width) x 120mm (Depth) x 100mm (Height). This safety relays is suitable for applications such as Food and Beverage, Hoisting, Material Handling, Material Working, Packaging. This safe relay conforms to IEC60947-5-1, IEC61508-1/2/3, ISO13849-1, IEC62061 functional safety standards, is certified by cULus, TÜV, EAC, CCC and KC marking. Harmony safety relays are compatible with Modicon logic controllers. This relay is mounted on a 35mm symmetrical DIN rail. Harmony XPS Basic and Universal safety relays are the first choice for managing single safety functions easily, typically in machines of simple to medium complexity. Harmony XPS Universal is the first choice for a broad range of simple to mid-complex machines.
Specifications
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1811003EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1811003EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Number Of Outputs
- 4 on/off configurable pulsed output
- Mounting Support
- 35 mm symmetrical DIN rail
- Minimum Output Current
- 20 mA relay output
- Input/Output Type
- semiconductor output 24 V DC, 20 mA Z2, not safety-related || pulsed output for diagnostics 24 V DC, 20 mA Z1, not safety-related
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV II IEC 60947-1
- Type Of Start
- automatic/manual/monitored
- Time Delay Range
- 0...900 s off
- Power Consumption In Va
- 6.5 VA 24 V AC 50/60 Hz
- Auxiliary Contact Composition
- 1 NC configurable || 3 NO configurable || 3 NO immediate
- Power Consumption In W
- 3 W 24 V DC
- Input Protection Type
- internal, electronic
- Depth
- 120 mm
- Maximum Response Time On Input Open
- 20 ms
Height100 mm
Minimum Output Voltage24 V relay output
[Ith] Conventional Free Air Thermal Current16 A
Associated Fuse Rating10 A gG NO relay output circuit IEC 60947-1
Net Weight0.350 kg
Number Of Inputs2 positive safety input 24 V DC 8 || 1 negative safety input
Input Compatibilitynormally closed circuit ISO 14119 || XC limit switch ISO 14119 || mechanical contact ISO 14119 || normally closed circuit ISO 13850 || antivalent pair ISO 14119 || OSSD pair IEC 61496-1-2 || 3-wire proximity sensors PNP
[Ie] Rated Operational Current5 A AC-1 for normally open relay contact || 3 A AC-15 for normally open relay contact || 5 A DC-1 for normally open relay contact || 3 A DC-13 for normally open relay contact || 3 A AC-1 for normally closed relay contact || 1 A AC-15 for normally closed relay contact || 3 A DC-1 for normally closed relay contact || 1 A DC-13 for normally closed relay contact
[Ui] Rated Insulation Voltage250 V 2)IEC 60947-1
Maximum Line Resistance500 Ohm
Width45 mm
Synchronisation Time Between Inputs0.5 s || 2 s || 4 s
Specifications
- [Us] Rated Supply Voltage
- 24 V AC - 15...10 % || 24 V DC - 20...20 %
- Product Or Component Type
- safety module
- Connections - Terminals
- removable screw terminal block, 0.2...2.5 mm² solid or flexible || removable screw terminal block, 0.25...2.5 mm² flexible with ferrule single conductor || removable screw terminal block, 0.2...1.5 mm² solid or flexible twin conductor || removable screw terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezel || removable screw terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel
- Safety Reliability Data
- MTTFd > 30 years ISO 13849-1 || Dcavg >= 99 % ISO 13849-1 || PFHd = 0.94E-09 for SS0 ISO 13849-1 || PFHd = 0.95E-09 for SS1 ISO 13849-1 || HFT = 1 IEC 62061 || PFHd = 0.94E-09 for SS0 IEC 62061 || PFHd = 0.95E-09 for SS1 IEC 62061 || SFF > 99% IEC 62061 || HFT = 1 IEC 61508-1 || PFHd = 0.94E-09 for SS0 IEC 61508-1 || PFHd = 0.95E-09 for SS1 IEC 61508-1 || SFF > 99% IEC 61508-1 || type = B IEC 61508-1
- Function Of Module
- emergency stop button with 2 NC contacts || guard monitoring with 1 or 2 limit switches || monitoring 2 PNP sensors || magnetic switch monitoring || light curtain monitoring || RFID switch || monitoring of electro-sensitive protection equipment (ESPE) || sensing mat/edges || proximity sensor monitoring || monitoring 1 PNP + 1 NPN sensor
Range Of ProductHarmony Safety Automation
Safety Module NameXPSUAT
Safety Module Applicationmonitoring antivalent contacts || for emergency stop, guard and light curtain monitoring || monitoring of pressure-sensitive 4-wire protective devices
Electrical Circuit TypeNC pair || PNP pair || antivalent pair || OSSD pair
Safety Levelcan reach PL e/category 4 for normally open relay contact ISO 13849-1 || can reach SILCL 3 for normally open relay contact IEC 62061 || can reach SIL 3 for normally open relay contact IEC 61508 || can reach PL c/category 1 for normally closed relay contact ISO 13849-1 || can reach SILCL 1 for normally closed relay contact IEC 62061 || can reach SIL 1 for normally closed relay contact IEC 61508
Environment
- Product Certifications
- TÜV || cULus
- Standards
- IEC 60947-5-1 || IEC 61508-1 functional safety standard || IEC 61508-2 functional safety standard || IEC 61508-3 functional safety standard || IEC 61508-4 functional safety standard || IEC 61508-5 functional safety standard || IEC 61508-6 functional safety standard || IEC 61508-7 functional safety standard || ISO 13849-1 functional safety standard || IEC 62061 functional safety standard
- Relative Humidity
- 5-95 % non-condensing
Ip Degree Of ProtectionIP54 mounting area)IEC 60947-1 || IP40 housing)IEC 60947-1 || IP20 terminals)IEC 60947-1
Ambient Air Temperature For Storage-25-85 °C
