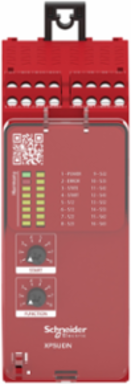

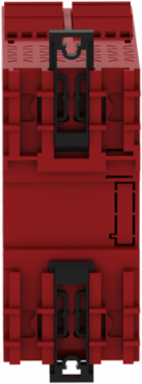

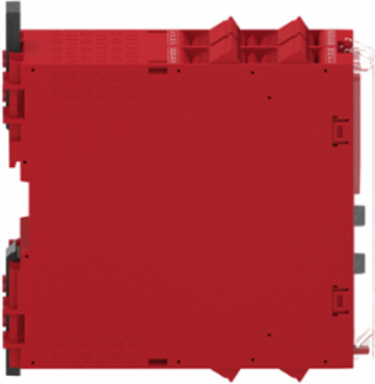

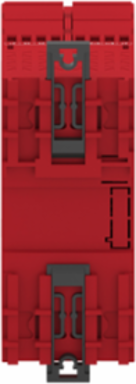

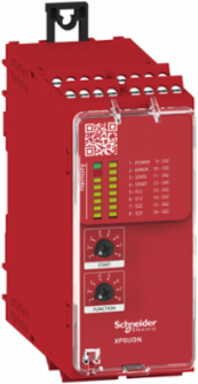

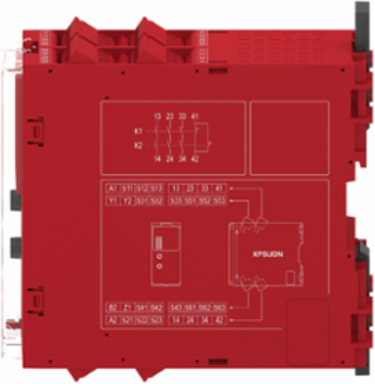

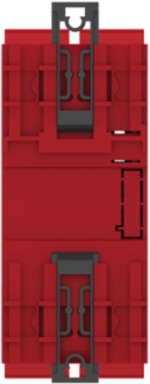

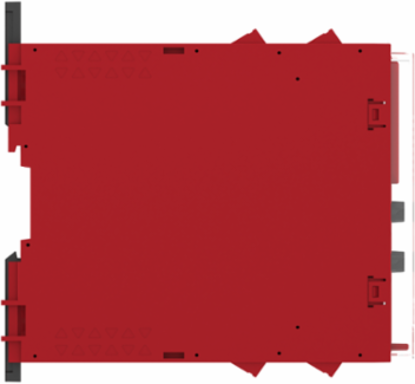

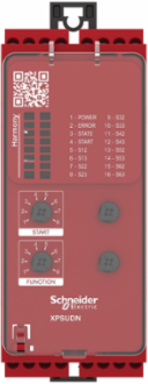

Schneider Electric XPSUDN13AP Harmony Safety Relay Module, 6 Inputs, PLe Category 4, 24V AC/DC
Schneider Electric XPSUDN13AP Harmony Safety Relay Module, 6 Inputs, PLe Category 4, 24V AC/DC
- MPN: XPSUDN13AP
- PPN: SCH-XPSUDN13AP
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$573.17/ EA
Description
This safety relay is designed for monitoring Emergency stop, Guard switch, Magnetic switch, Proximity safety switch, PNP sensor, RFID safety switch or safety light curtain. The safety relay is powered with 24V AC/DC, and equipped with a screw removable terminal block. This universal safety module embeds pre-defined safety functions, or selectable safety functions via rotary selectors. This safety relay embeds 6 safety inputs, 7 ON/OFF configurable pulsed outputs, 3 NO, 1 NC safety outputs, and 1 solid-state diagnostic output with complete status information. The maximum safety level achieved by this safety relay is PLe/Category 4 conforming to ISO 13849-1, SILCL 3 conforming to IEC 62061, SIL 3 conforming to IEC 61508. This safety relay weighs 0,350kg. Its dimensions are 45mm (Width) x 120mm (Depth) x 100mm (Height). This safety relay weighs 0,350kg. Its dimensions are 45mm (Width) x 120mm (Depth) x 100mm (Height). This safety relays is suitable for applications such as Food and Beverage, Hoisting, Material Handling, Material Working, Packaging. This safe relay conforms to IEC60947-5-1, IEC61508-1/2/3, ISO13849-1, IEC62061 functional safety standards, is certified by cULus, TÜV, EAC, CCC and KC marking. Harmony safety relays are compatible with Modicon logic controllers. This relay is mounted on a 35mm symmetrical DIN rail. Harmony XPS Basic and Universal safety relays are the first choice for managing single safety functions easily, typically in machines of simple to medium complexity. Harmony XPS Universal is the first choice for a broad range of simple to mid-complex machines.
Specifications
Environment
- Product Certifications
- TÜV || cULus
- Ip Degree Of Protection
- IP20 terminals)IEC 60947-1 || IP40 housing)IEC 60947-1 || IP54 mounting area)IEC 60947-1
- Ambient Air Temperature For Storage
- -25-85 °C
Ambient Air Temperature For Operation-25-50 °C at 24 V AC || -25-55 °C at 24 V DC
StandardsIEC 60947-5-1 || IEC 61508-1 functional safety standard || IEC 61508-2 functional safety standard || IEC 61508-3 functional safety standard || IEC 61508-4 functional safety standard || IEC 61508-5 functional safety standard || IEC 61508-6 functional safety standard || IEC 61508-7 functional safety standard || ISO 13849-1 functional safety standard || IEC 62061 functional safety standard
Relative Humidity5-95 % non-condensing
Specifications
- [Us] Rated Supply Voltage
- 24 V AC - 15...10 % || 24 V DC - 20...20 %
- Product Or Component Type
- safety module

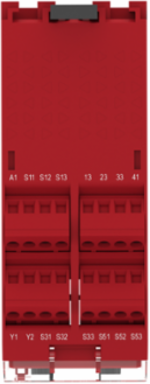

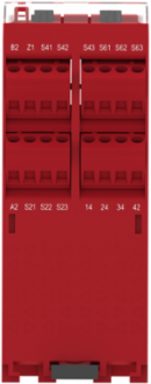

- Connections - Terminals
- removable screw terminal block, 0.2...2.5 mm² solid or flexible || removable screw terminal block, 0.25...2.5 mm² flexible with ferrule single conductor || removable screw terminal block, 0.2...1.5 mm² solid or flexible twin conductor || removable screw terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezel || removable screw terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel
- Safety Reliability Data
- MTTFd > 30 years ISO 13849-1 || Dcavg >= 99 % ISO 13849-1 || PFHd = 0.88E-09 ISO 13849-1 || HFT = 1 IEC 62061 || PFHd = 0.88E-09 IEC 62061 || SFF > 99% IEC 62061 || HFT = 1 IEC 61508-1 || PFHd = 0.88E-09 IEC 61508-1 || SFF > 99% IEC 61508-1 || type = B IEC 61508-1
- Function Of Module
- emergency stop button with 2 NC contacts || guard monitoring with 1 or 2 limit switches || monitoring 2 PNP sensors || magnetic switch monitoring || light curtain monitoring || RFID switch || monitoring of electro-sensitive protection equipment (ESPE) || proximity sensor monitoring
Range Of ProductHarmony Safety Automation
Safety Module NameXPSUDN
Safety Module Applicationmonitoring antivalent contacts || for emergency stop, guard and light curtain monitoring
Electrical Circuit TypeNC pair || PNP pair || antivalent pair || OSSD pair
Safety Levelcan reach PL e/category 4 for normally open relay contact ISO 13849-1 || can reach SILCL 3 for normally open relay contact IEC 62061 || can reach SIL 3 for normally open relay contact IEC 61508 || can reach PL c/category 1 for normally closed relay contact ISO 13849-1 || can reach SILCL 1 for normally closed relay contact IEC 62061 || can reach SIL 1 for normally closed relay contact IEC 61508
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1811003EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1811003EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Number Of Outputs
- 7 on/off configurable pulsed output
- Mounting Support
- 35 mm symmetrical DIN rail
- Minimum Output Current
- 10 mA relay output
- Input/Output Type
- semiconductor pulsed diagnostic output 24 V DC, 20 mA Z1, not safety-related
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV II IEC 60947-1
- Type Of Start
- automatic/manual/monitored
- Input Compatibility
- normally closed circuit ISO 14119 || XC limit switch ISO 14119 || mechanical contact ISO 14119 || normally closed circuit ISO 13850 || antivalent pair ISO 14119 || OSSD pair IEC 61496-1-2 || 3-wire proximity sensors PNP
- [Ie] Rated Operational Current
- 5 A AC-1 for normally open relay contact || 3 A AC-15 for normally open relay contact || 5 A DC-1 for normally open relay contact || 3 A DC-13 for normally open relay contact || 3 A AC-1 for normally closed relay contact || 1 A AC-15 for normally closed relay contact || 3 A DC-1 for normally closed relay contact || 1 A DC-13 for normally closed relay contact
- [Ui] Rated Insulation Voltage
- 250 V 2)IEC 60947-1
- Maximum Line Resistance
- 500 Ohm
- Input Protection Type
- internal, electronic
- Depth
- 120 mm
- Maximum Response Time On Input Open
- 20 ms
Height100 mm
Minimum Output Voltage12 V relay output
[Ith] Conventional Free Air Thermal Current16 A
Associated Fuse Rating10 A gG NO relay output circuit IEC 60947-1 || 4 A gG NC relay output circuit IEC 60947-1
Net Weight0.350 kg
Number Of Inputs6 safety input 24 V DC 5
Power Consumption In Va10.5 VA 24 V AC 50/60 Hz
Auxiliary Contact Composition3 NO + 1 NC
Power Consumption In W4.5 W 24 V DC
Local Signallingpower ON LED green) || error LED red) || start LED yellow) || safety status LED yellow) || safety input S12 LED yellow) || safety input S13 LED yellow) || safety input S22 LED yellow) || safety input S23 LED yellow) || safety input S32 LED yellow) || safety input S33 LED yellow) || safety input S42 LED yellow) || safety input S43 LED yellow) || safety input S52 LED yellow) || safety input S53 LED yellow) || safety input S62 LED yellow) || safety input S73 LED yellow)
Width45 mm
Synchronisation Time Between Inputs0.5 s || 2 s || 2.2 s || 4 s
