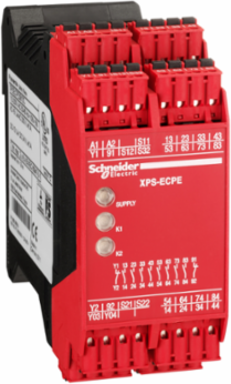

Telemecanique Sensors XPSECPE5131P Safety Module - Expandable to 24V AC/DC, IP20 Protection
- MPN: XPSECPE5131P
- PPN: SCH-XPSECPE5131P
CAD
$794.57
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This XPSECPE safety module allows to expand the number of safety contacts available on XPS base modules. It meets the requirements of PL c/Category 2 conforming to EN/ISO 13849-1.and SILCL1 conforming to EN/IEC 61508 and EN/IEC 62061. Used in conjunction with XU2S single-beam photo-electric sensors (periodically tested), it establishes a category 2 light curtain conforming to IEC/EN 61496 parts 1 and 2. 24V AC/DC supply allows direct supply via an auxiliary transformer, like ABT7 or ABL6, allowing saving at installation time. It has removable terminals for easier and better control wires tightening, thus improving installation reliability.
Documentation & Downloads
Specifications
Key Specifications
- [Us] Rated Supply Voltage
- 24 V AC - 15...10 % || 24 V DC - 15...10 %
- Product Or Component Type
- Preventa safety module
- Number Of Additional Circuits
- 2 NC + 1 solid state output
- Safety Module Application
- increasing the number of safety contacts
- Function Of Module
- increasing the number of safety contacts
Range Of ProductPreventa Safety automation
Safety Module NameXPSECPE
Output Typerelay, 8 NO, volt-free
Safety Reliability DataMTTFd > 100 years EN/ISO 13849-1 || DC = 0...99 % EN/ISO 13849-1 || PFHd = 2.47E-8 1/h EN/IEC 62061
Safety Levelcan reach PL e/category 4 can reach the maximum safety level of module base EN/ISO 13849-1 || can reach SILCL 3 can reach the maximum safety level of module base EN/IEC 62061
Complementary
- [Ith] Conventional Free Air Thermal Current
- 24 A relay output
- Output Thermal Current
- 6 A per relay relay output
- Minimum Output Current
- 10 mA relay output
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV III EN/IEC 60947-5-1, DIN VDE 0110 parts 1 & 2
- Connections - Terminals
- captive screw clamp terminals, 1 x 0.2...1 x 2.5 mm² solid without cable end || captive screw clamp terminals, 1 x 0.2...1 x 2.5 mm² flexible without cable end || captive screw clamp terminals, 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel || captive screw clamp terminals, 1 x 0.25...1 x 1.5 mm² flexible with cable end, with bezel || captive screw clamp terminals, 2 x 0.2...2 x 1 mm² solid without cable end || captive screw clamp terminals, 2 x 0.2...2 x 1 mm² flexible without cable end || captive screw clamp terminals, 2 x 0.25...2 x 1 mm² flexible with cable end, without bezel || captive screw clamp terminals, 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel
- Power Consumption In Va
- 4 VA
- Input Protection Type
- internal, electronic
- Supply Frequency
- 50/60 Hz
- Breaking Capacity
- 360 VA holding AC-15 B300 relay output || 3600 VA inrush AC-15 B300 relay output
Mounting Support35 mm symmetrical DIN rail
Minimum Output Voltage5 V relay output
Associated Fuse Rating6 A gG relay output EN/IEC 60947-5-1, DIN VDE 0660 part 200
Net Weight0.55 kg
[Ui] Rated Insulation Voltage300 V 2)EN/IEC 60947-5-1, DIN VDE 0110 parts 1 & 2
Local Signalling3 LEDs
Breaking Capacity3 A 24 V DC-13)50 ms relay output || 20 mA 24 V solid state output circuit
Maximum Response Time On Input Open10 ms
Environment
- Product Certifications
- TÜV || CSA || UL
- Standards
- EN/IEC 60947-5-1 || EN/IEC 60204-1
- Ambient Air Temperature For Storage
- -25-70 °C
Ambient Air Temperature For Operation-25-55 °C
Ip Degree Of ProtectionIP20 terminals)EN/IEC 60529 || IP40 enclosure)EN/IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1406024EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1406024EN
