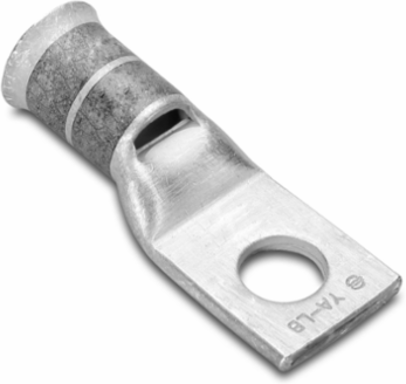

Burndy YA3CLB HYLUG Standard Length Barrel Terminal, 4 AWG Copper, 1.92 Inch Overall Length, 35 kV
- MPN: YA3CLB
- UPC: 781810501306
- PPN: BUR-502130
CAD
$19.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Comp Terminal Flex Cond, 1 Hole/W/InspWindow, 3 Str Code, N50 Navy, 4 Flex, 4(105/#24)DLO, 600 V-35 kV, 5/16" Stud, Belled End.
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length inch
- 0.88 in
- Dimension - D inch
- 0.70 in
- Dimension - Hole Size mm
- 8 mm
- Dimension - Length Overall inch
- 1.92 in
- Dimension - Outside Diameter inch
- 0.38 in
- Dimension - Strip Length inch
- 15/16
- Physical Attribute - Tongue Angle
- Straight
Dimension - Bolt Hole Size inch0.33 in
Dimension - Hole Size inch0.33 in
Dimension - L Length Overall mm49 mm
Dimension - N inch0.34 in
Dimension - Pad Width inch0.55 in
Dimension - Z inch0.36 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL468A-468B
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL468A-468B
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size
- 4 (105/#24) DLO
- Conductor - Copper Flex H Size
- 4 AWG
- Conductor - Copper Flex K Size
- 4 AWG
- Conductor - Copper Flex M Size Range
- 4 AWG
- Conductor - Copper Str Navy Size Range
- 50 (19) Navy
- Conductor - Material
- Copper
Conductor - Copper Flex G Size4 AWG
Conductor - Copper Flex I Size4 AWG
Conductor - Copper Flex M Size4 AWG
Conductor - Copper Str Navy Size50 (19) Navy
Conductor - Copper Str Size3 AWG
Conductor TypeCU C DLO-Size
General
- Application
- For Flex Conductor
- Connector Type
- Terminal
- Feature - Barrel Style
- Belled
- Material
- Copper
- Physical Attribute - Tongue Type
- Standard
- Plating Type
- Tin Plated
- Temperature Rating
- 194
- Type
- Standard Belled Barrel, Tin Plated
- UPC 12 Digit
- 7818105013066
Color CodeWhite
Die Index9;1016
Feature - Barrel TypeStandard
Physical Attribute - Number of Holes1
PlatedY
Sub BrandHYLUG
Trade NameHYLUG™
UPC781810501306
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
