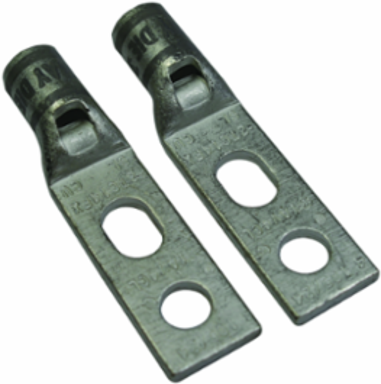

Burndy YAV2CL2TC38FXSL Standard Length Barrel Compression Terminal 2 AWG, 3/8 Inch Bolt Size, 600V, Copper
- MPN: YAV2CL2TC38FXSL
- UPC: 781810459249
- PPN: BUR-10079903
CAD
$24.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cu Compression Terminal, Slotted, #2 AWG (Code), #2 Weld, 3 (125/#24)-2 (150/#24) DLO (Flex), 60 Navy, Brown, 10 Index, 3/8 IN Bolt Size
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 5/8 in
- Dimension - Bolt Hole Size inch
- 0.39 in
- Dimension - Hole Size mm
- 10 mm
- Dimension - Length Overall inch
- 2.82 in
- Dimension - Outside Diameter inch
- 0.46 in
- Dimension - Strip Length inch
- 11/16
- Dimension - Z inch
- 0.42 in
Dimension - B Length inch0.62 in
Dimension - Hole Size inch0.41 in
Dimension - L Length Overall mm72 mm
Dimension - N inch0.41 in
Dimension - Pad Width inch0.68 in
Dimension - Stud Size inch3/8
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size
- 2 (150/#24) DLO
- Conductor - Copper Flex H Size
- 2 AWG
- Conductor - Copper Flex K Size
- 2 AWG
- Conductor - Copper Str Navy Size
- 60 (37) Navy
- Conductor - CopperWeld Str Size
- 2 A AWG;2 F AWG;2 G AWG;2 J AWG;2 K AWG;2 N AWG;2 P AWG
Conductor - Copper Flex G Size2 AWG
Conductor - Copper Flex I Size2 AWG
Conductor - Copper Flex M Size2 AWG
Conductor - Copper Str Size2 AWG
Conductor - MaterialCopper
General
- Color Code
- Brown
- Die Index
- 10
- Feature - Barrel Type
- Standard
- Physical Attribute - Number of Holes
- 2
- Plating Type
- Tin - Electro Plated
- Type
- Standard Barrel, Tin Plated
- UPC 12 Digit
- 7818104592499
Connector TypeTerminal
Feature - Barrel StyleChamfered
MaterialCopper
PlatedY
Trade NameHYLUG™
UPC781810459249
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 20
