Schneider Electric LV431542 MT250 Standard Motor Mechanism, 250 A, 380-480 VAC, Automatic Spring Charging
Schneider Electric LV431542 MT250 Standard Motor Mechanism, 250 A, 380-480 VAC, Automatic Spring Charging
- MPN: LV431542
- PPN: SCH-LV431542
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$4404.72/ EA
Description

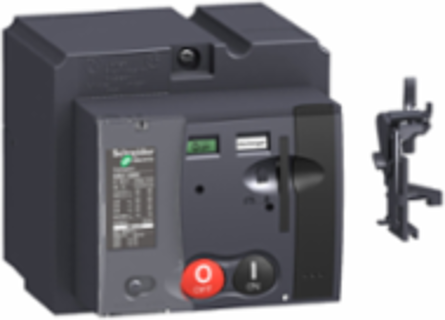

This is a standard motor mechanism for Compact NSX 250 and PowerPacT Multistandard J frame devices that allows automatic device spring-charging. It helps the circuit breaker to feature a high mechanical endurance as well as easy and sure opening or closing operations. It provides a double insulation of the front face and all indications remain visible and accessible. The control voltage of this motor mechanism module is 380VAC to 415VAC 50/60Hz or 440VAC to 480VAC 60Hz. The consumption is less than 500VA. Padlocking of the device remains possible. The motor mechanism is supplied with SDE adapter.
Specifications
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2308038EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI2308038EN
Complementary
- Locking Options Description
- 1 to 3 padlocks Ø 5 to Ø 8 || padlocking in OFF position
- Control Signal Type
- maintained || impulse
- Maximum Operating Frequency
- 4 per minute
Response Time< 700 ms open || < 80 ms closed
Provided EquipmentSDE adaptor
Maximum Power Consumption In Va500 VA closing || 500 VA opening
Specifications
- [Uc] Control Circuit Voltage
- 380...415 V AC 50/60 Hz || 440...480 V AC 60 Hz
- Product Or Component Type
- motor mechanism
- Mounting Mode
- fixed
- Device Application
- automatic spring charging
Range CompatibilityComPacT new generation ComPacT NSX250 new generation || ComPacT new generation ComPacT NSX DC new generation NSX250 DC
Control Typestandard
[In] Rated Current250 A
Device Short NameMT250
Contractual warranty
- Warranty
- 18 months
