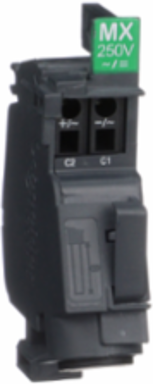

Square D LV426844 MX Shunt Trip Release for ComPacT NSXm, 220/240VAC 50Hz, 250VDC
- MPN: LV426844
- PPN: SCH-LV426844
CAD
$954.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This standard MX shunt trip is used on Compact NSXm and PowerPact B devices. This auxiliary is used for emergency off or failsafe remote opening applications. It is a one click spring type auxiliary for quick and easy installation, visible from the front face of the device. This MX auxiliary has a 220/240VAC 50Hz, 208/240/277VAC 60Hz or 250VDC rated voltage. It trips the circuit breaker when the control voltage rises above 70% of its rated value. It complies with IEC 60947-2 standard. Compact NSXm and PowerPact B embed either 1 MN or 1 MX coil.
Documentation & Downloads
Specifications
Key Specifications
- [Uc] Control Circuit Voltage
- 220...240 V AC 50 Hz || 208...240 V AC 60 Hz || 277 V AC 60 Hz || 250 V DC
- Range Compatibility
- ComPact ComPacT NSXm new generation || ComPact ComPact NSXm || PowerPact PowerPact B
- Range
- ComPact
- Voltage Release Type
- opening coil || shunt trip release
- Device Short Name
- MX
Range Of ProductComPacT NSXm new generation
Product Or Component Typevoltage release
Control Typestandard
Device Applicationcontrol
Complementary
- Auxiliary Connection Terminal
- spring
- Control Signal Type
- impulse || maintained
- Threshold Tripping Voltage
- 0.7 Un opening
Impulse Duration>= 20 ms
Response Time< 50 ms
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2311043EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI2311043EN
