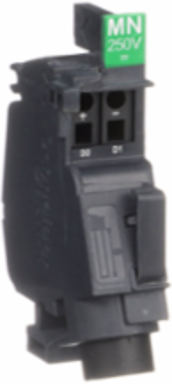

Schneider Electric LV426815 MN Undervoltage Release, 250V DC, for ComPacT NSXm & PowerPact B
Schneider Electric LV426815 MN Undervoltage Release, 250V DC, for ComPacT NSXm & PowerPact B
- MPN: LV426815
- PPN: SCH-LV426815
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$900.95/ EA
Description
This standard MN undervoltage release is used on Compact NSXm and PowerPact B devices. This auxiliary is used for emergency off or failsafe remote tripping applications. It is a one click spring type auxiliary for quick and easy installation, visible from the front face of the device. This MN auxiliary has a 250 VDC rated voltage. It trips the circuit breaker when the control voltage drops below 35% of its rated value. It complies with IEC 60947-2 standard. Compact NSXm and PowerPact B embed either 1 MN or 1 MX coil.
Specifications
Specifications
- [Uc] Control Circuit Voltage
- 250 V DC
- Range Compatibility
- ComPact ComPacT NSXm new generation || ComPact ComPact NSXm || PowerPact PowerPact B
- Range
- ComPact
- Voltage Release Type
- opening coil || undervoltage release
- Device Short Name
- MN
Range Of ProductComPacT NSXm new generation
Product Or Component Typevoltage release
Control Typestandard
Device Applicationcontrol
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2311042EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI2311042EN
Complementary
- Auxiliary Connection Terminal
- spring
- Threshold Tripping Voltage
- 0.35...0.7 x Un opening || 0.85 x Un closing
Response Time< 50 ms
