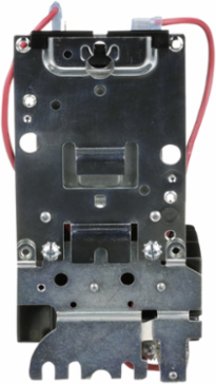

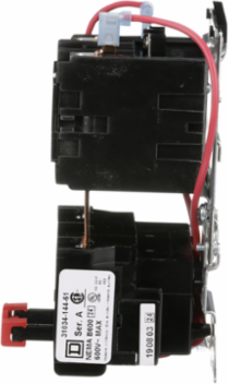

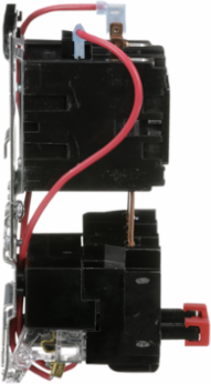

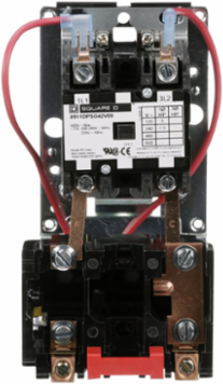

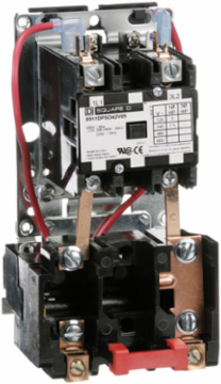

Square D 8911DPSO42V09 NEMA Starter 40A 7.5HP 1 Phase 2 Pole Open
- MPN: 8911DPSO42V09
- UPC: 785901167853
- PPN: SCH-8911DPSO42V09
CAD
$364.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
8911 definite purpose starters are inexpensive starters for applications with relatively low duty cycles. Typical applications include air compressors, agricultural equipment, pumps, and HVAC equipment. This two pole definite purpose starter has a full load rating of 40 amperes. This starter has ratings of 3 HP at 115 VAC and 7.5 HP at 230 VAC single phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 208/240 VAC 60 Hz 220 VAC 50 Hz coil. The starter has straight through wiring. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. This starter doesn't have an enclosure. Enclosures are available. Starter is 7.0 inches tall, 3.5 inches wide and 4.0 inches deep. Auxiliary contacts are available for these starters. 8911DPS definite purpose starters are UL component recognized.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States
Complementary Attributes
- Locked Rotor Rated Current
- 240 A 230 V AC, 200 A 460 V AC, 160 A 575 V AC
- Line Rated Current
- 40 A
Maximum Horse Power Rating3-3 hp 115 V AC, 1 phase, 7.5-7.5 hp 230 V AC, 1 phase
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- [Uc] Control Circuit Voltage
- 220 V AC 50 Hz, 208...240 V AC 60 Hz
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Energy Efficiency Optimized
- False
- Number Of Thermal Units Required
- 1
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- DPS
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2014
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Number Of Poles2P
Phase1 phase
Product Or Component TypeDefinite Purpose Starter
ReturnabilityYes
Thermal Overload Typemelting alloy
[Ue] Rated Operational Voltage600 V AC
Package Weight(Lbs)1.070 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
Take BackNo
Mercury FreeYes
Nema Degree Of Protectionnot rated (open device)
Packaging Without Single Use PlasticYes
General Attributes
- Phase
- 1 phase
- Range Of Product
- DPS
Product Or Component TypeDefinite Purpose Starter
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
