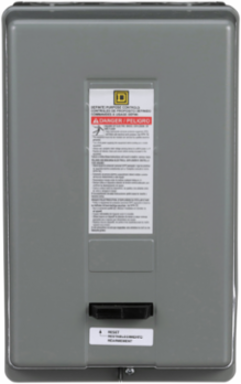

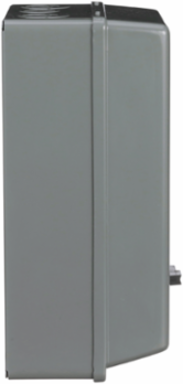

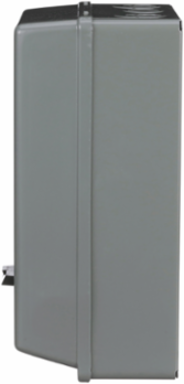

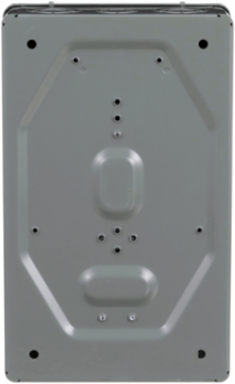

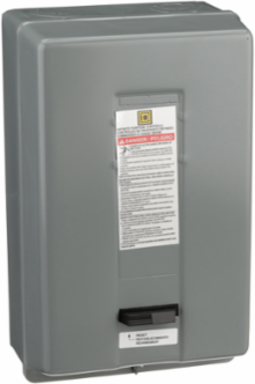

Definite Purpose Starter, 50A 3 Pole 3 Phase 120 VAC Coil, NEMA 1
Definite Purpose Starter, 50A 3 Pole 3 Phase 120 VAC Coil, NEMA 1
Definite Purpose Starter, 50A 3 Pole 3 Phase 120 VAC Coil, NEMA 1
Definite Purpose Starter, 50A 3 Pole 3 Phase 120 VAC Coil, NEMA 1
Definite Purpose Starter, 50A 3 Pole 3 Phase 120 VAC Coil, NEMA 1
Square D

Square D 8911DPSG53V02 Definite Purpose Starter, 50A 3 Pole 3 Phase 120 VAC Coil, NEMA 1

  • MPN: 8911DPSG53V02
  • UPC: 785901024941
  • PPN: SCH-8911DPSG53V02

CAD

$674.78

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

This definite purpose starter from Schneider Electric is engineered to provide reliable control for motor applications requiring efficient performance. With a robust 50A capacity across three poles and designed for three-phase configurations, it expertly handles the demands of your automation needs. Featuring a 120 VAC coil and housed in a NEMA 1 enclosure, this starter ensures effective environmental protection while facilitating seamless operation in various industrial settings. Ideal for applications where precise control and durability are paramount, it stands as a trusted choice for both professionals and businesses looking to optimize their motor control systems.

Documentation & Downloads

Specifications

Additional

Rated Current
50 A
Locked Rotor Rated Current
300 A 230 V AC, 250 A 460 V AC, 200 A 575 V AC
Control Circuit Voltage
110 V AC 50 Hz, 120 V AC 60 Hz
Network Number Of Phases
3 phases
Number Of Thermal Units Required
3
Nema Degree Of Protection
NEMA 1
Mercury Free
Yes
China Rohs Regulation
Product out of China RoHS scope
Rated Operational Voltage600 V AC
Motor Power Hp3-3 hp 115 V AC 1 phase, 10-10 hp 230 V AC 1 phase, 15-15 hp 230 V AC 3 phases, 30-30 hp 460 V AC 3 phases, 30-30 hp 575 V AC 3 phases
Number of Poles3
Thermal Overload Typemelting alloy
Enclosure Materialpainted sheet steel
Range Of ProductDPS
Eu Rohs DirectiveCompliant with Exemptions
