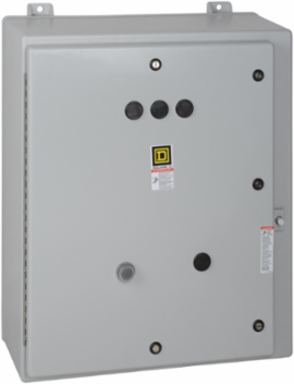

Square D 8539SDA53V02S NEMA Combination Starter Size 2, 45A, 25HP, 600V, 3-Phase, NEMA 12 Enclosure
- MPN: 8539SDA53V02S
- UPC: 785901519782
- PPN: SCH-8539SDA53V02S
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Type S nonreversing thermal magnetic circuit breaker combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 2 starters have ratings of 7.5 to 10 HP at 208 VAC, 10 HP at 240 VAC and 20-25 HP at 480 VAC and 25 HP at 600 VAC three phase. Combination starter has a HHL36050M72 circuit breaker. This 3 pole starter is for three phase applications. Combination starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This nonreversing NEMA combination starter has a melting alloy type overload relay which uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 3R/12 Dusttight and driptight industrial enclosure is used to protect this starter. Enclosure is 27.75 inches tall, 10.50 inches wide and 9.59 inches deep. A wide variety of accessories are available for Type S starters. Type S combination starters are UL listed and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States
ComplianceTAA Compliant
Complementary Attributes
- Control Circuit
- separate control circuit
Maximum Horse Power Rating10-10 hp 230 V AC, 3 phase25-25 hp 575 V AC, 3 phase7.5-10 hp 200 V AC, 3 phase20-25 hp 460 V AC, 3 phase
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Weee Product Category
- 5
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Control Circuit
- separate control circuit
- Disconnector Device Type
- Mag-Gard circuit breaker
- Local Signalling
- no indicator
- Number Of Poles
- 3P
- Product Or Component Type
- Combination Starter
- Returnability
- No
- Thermal Overload Type
- melting alloy 3
- [Ue] Rated Operational Voltage
- 600 V AC
- Package Weight(Lbs)
- 39.845 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Publishable Date2025-11-19
Stocking FlagY
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Control Typeno control units
Energy Efficiency OptimizedFalse
Motor Starter Typenon reversing
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductS
Sustainable PackagingYes
[Uc] Control Circuit Voltage110 V AC 50 Hz120 V AC 60 Hz
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8537109170
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant By Exemption
- Nema Size
- 2
- Packaging Without Single Use Plastic
- Yes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Nema Degree Of ProtectionNEMA 12 painted sheet steel with external reset
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- Combination Starter
Range Of ProductS
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
