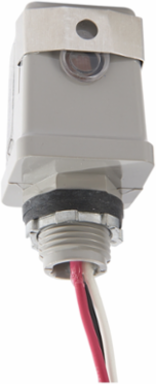

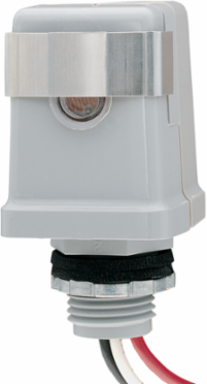

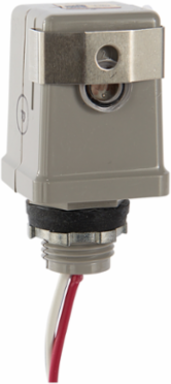

Intermatic K4123C Stem Mount Thermal Photocontrol 208-277 V
Intermatic K4123C Stem Mount Thermal Photocontrol 208-277 V
- MPN: K4123C
- UPC: 078275029590
- PPN: INT-K4123C
- UNSPSC: 39121524
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$29.79/ EA
Description
These photocontrols install on standard outdoor light fixtures and electrical boxes with 1⁄2"-14 NPSM thread or 7⁄8" knock-out holes for dusk-to-dawn ON/OFF control of outdoor lighting.
Features
- Mechanical bimetal switch with Cadmium Sulfide photocell
- Delay feature prevents unwanted OFF switching
- Gray plastic housing
- 1⁄2"-14 NPSM threaded stem
- Washer gasket and locking nut included
- #18 AWG, 9" wire leads
- NA
Specifications
Specifications
- Input Voltage Rating Range(s)
- 208-277 VAC, 50/60 Hz
- Color
- Gray
- Marketing Description
- These photocontrols install on standard outdoor light fixtures and electrical boxes with 1⁄2"-14 NPSM thread or 7⁄8" knock-out holes for dusk-to-dawn ON/OFF control of outdoor lighting.
- Length
- NA NA
- Width
- 1.563 in
- Country of Origin
- Mexico
Warranty Period2-Year limited
ApplicationsOutdoor Lighting Control
Height3 in
WeightNA lbs
Depth1.563 in
Downloads
