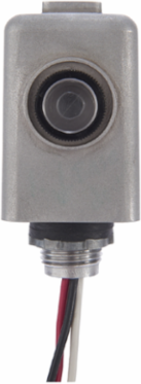

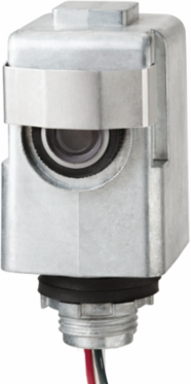

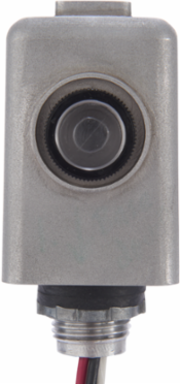

Intermatic K4423M Thermal Photocontrol 208-277 V, 1/2 Inch Stem Mount
- MPN: K4423M
- UPC: 078275106000
- PPN: INT-K4423M
- UNSPSC: 39121524
CAD
$33.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
These photocontrols install on standard outdoor light fixtures and electrical boxes with 1⁄2"-14 NPSM thread or 7⁄8" knock-out holes for dusk-to-dawn ON/OFF control of outdoor lighting.
Features
- Mechanical bimetal switch with Cadmium Sulfide photocell.
- Delay feature prevents unwanted OFF switching.
- Die-cast metal housing.
- 1⁄2"-14 NPSM threaded stem.
- Washer gasket and locking nut included.
- #18 AWG, 9" wire leads.
Documentation & Downloads
Specifications
Key Specifications
| Input Voltage Rating Range(s) | 208-277 VAC, 50/60 Hz |
|---|---|
| Color | Gray |
| Marketing Description | These photocontrols install on standard outdoor light fixtures and electrical boxes with 1⁄2"-14 NPSM thread or 7⁄8" knock-out holes for dusk-to-dawn ON/OFF control of outdoor lighting. |
| Width | 1.563 in |
| Country of Origin | Mexico |
| Warranty Period | 2-Year limited |
|---|---|
| Applications | Outdoor Lighting Control |
| Height | 3 in |
| Depth | 1.563 in |
