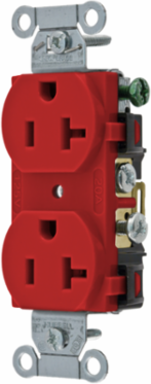

Hubbell Wiring Device-Kellems CR20R Commercial Grade Duplex Receptacle, 20A 125V, 2-Pole 3-Wire Grounding, Red
- MPN: CR20R
- UPC: 783585197555
- PPN: HBL-CR20R
- UNSPSC: 39121406
CAD
$3.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Devices, Duplex Receptacle, Commercial Grade, Smooth Face, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Side Wired Only, Red
Features
- Easy access split circuit tab
- Fork terminal capable
- Smooth face
- Triple wipe contacts
- Self Grounding
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 1.700 in
- Application
- Commercial Specification Grade
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Voltage Rating
- 125 VAC
- Wire Size
- #14 AWG to #12 AWG
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A04A060
- Current Rating
- 20 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.8 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 17.710 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 42.500 in
- Pallet Weight
- 1579.500 lb.
- NAICS Code
- 335931A102
Current / Amperage Rating20 A
Amperage Rating20 A
ColorRed
NEMA Rating5-20R
Number of Wires3-Wire Grounding
Special FeaturesSelf Grounding
Wattage2500
ConnectivityBack and Side Wired
Nema Rating5-20R
Number Of Wires3-Wire Grounding
Description - InvoiceDUP RCPT, COMM GRD, 20A 125V, 5-20R, R
Harmonization Code8536698000
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialThermoplastic
BOX SIZE2.400x8.000x4.400 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585197555
Case - Total Units100 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585197554
Pallet Length48.000 in
Pallet Width40.000 in
