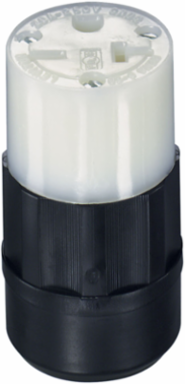

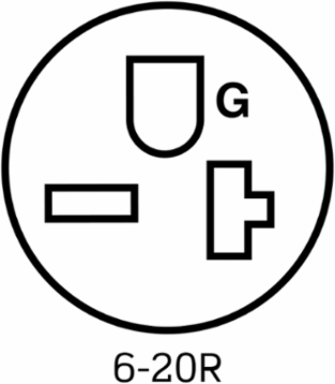

Leviton 5469-C Industrial Grade Straight Blade Connector, 20 Amp, 250 Volt, NEMA 6-20R
- MPN: 5469-C
- UPC: 078477796047
- PPN: LEV-5469-C
CAD
$61.93
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
20 Amp, 250 Volt, NEMA 6-20R, 2P, 3W, Connector, Straight Blade, Industrial Grade, Grounding - Black/White
Features
- Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a lifetime warranty:
- One piece contacts reduce friction and overheating
- Unique cord clamp accepts wide range of cord sizes (.245"-.700")
- Rugged nylon construction resists impact, heat, chemicals, and rough use
- Industry exclusive lifetime warranty
- Ideal for motors such as unisaws, table saws, portable dust collectors, air compressors and generators
Documentation & Downloads
Specifications
Additional
- Amperage
- 20 A
- Poles
- 2
- NEMA Configuration
- WD-6
- Grounding
- Grounding
- Terminal Accommodation
- 18-10 AWG
- Temperature Rise
- Max 30°C after 250 cycles OL at 200% rated current
- Material
- Impact Modified Nylon, Solid Brass, Steel Zinc Plated
- Clamp Insert
- Nylon
- Blades/Contacts
- Solid Brass
- Body Material
- Impact Modified Nylon
- Back Cover
- Thermoplastic
- Compliance
- RoHS, UL 498, CSA C22.2 No. 42, ANSI C-73, NOM 057
- UL 498
- File E13399
- NOM
- 057
- Country of Origin
- Mexico
- Color
- Black-White
Voltage250 VAC
Wires3
Device TypeStraight Blade Connector
Torque Range10-14 in-lbs
Cord Range0.230 to 0.685 in
Operating Temperature-40°C to 60°C
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Terminal ScrewsBrass
Assembly ScrewsSteel, Zinc Plated
Cord-ClampNylon
Flammability RatingRated HB or better UL94
CSA C22.2 No. 42File LR-406
UL Fed Spec WC-596File E13393
ANSIC-73
EnvironmentDry
