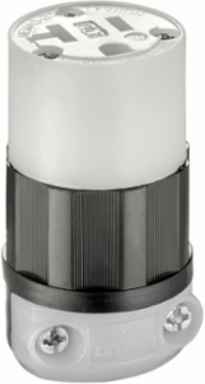

Leviton 5369-C Straight Blade Connector 20 Amp 125 Volt NEMA 5-20R Industrial Grade Black-White
- MPN: 5369-C
- UPC: 078477795941
- PPN: LEV-5369-C
CAD
$31.36
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
20 Amp, 125 Volt, NEMA 5-20R, 2P, 3W, Connector, Straight Blade, Industrial Grade, Grounding - Black/White
Features
- Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a lifetime warranty:
- One piece contacts reduce friction and overheating
- Unique cord clamp accepts wide range of cord sizes (.245"-.700")
- Rugged nylon construction resists impact, heat, chemicals, and rough use
- Industry exclusive lifetime warranty
- Ideal for extension cords and generators
Documentation & Downloads
Specifications
Additional
- Amperage
- 20 A
- NEMA
- WD-6
- Wires
- 3
- Grounding
- Grounding
- Dielectric Voltage
- 2000 V per UL498
- Torque Range
- 10-14 in-lbs
- Material
- Impact Modified Nylon, Solid Brass, Steel Zinc Plated, Thermoplastic, Nylon
- Compliance
- ROHS, UL 498, CSA C22.2 No. 42, ANSI C-73, NOM 057, UL Fed Spec WC-596
- Color
- Black-White
Voltage125 VAC
Poles2
Device TypeStraight Blade Connector
Current InterruptingCertified for full rated current
Operating Temperature-40°C to 60°C
Terminal Accommodations18-10 AWG
Flammability RatingHB or better UL94
Country of OriginMexico
