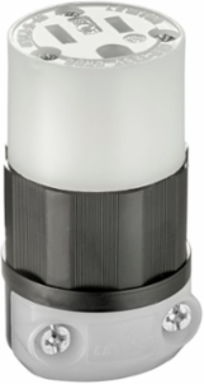

Leviton 5269-C Industrial Grade Straight Blade Connector 15 Amp 125 Volt NEMA 5-15R Black-White
- MPN: 5269-C
- UPC: 078477795316
- PPN: LEV-5269-C
CAD
$26.37
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Connector, Straight Blade, Industrial Grade, Grounding - Black/White
Features
- Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a lifetime warranty:
- One piece contacts reduce friction and overheating
- Unique cord clamp accepts wide range of cord sizes (.245"-.700")
- Rugged nylon construction resists impact, heat, chemicals, and rough use
- Industry exclusive lifetime warranty
- Ideal for extension cords and generators
Documentation & Downloads
Specifications
Additional
- Amperage
- 15 A
- Current Interrupting
- Certified for current interrupting at full rated current
- Pole(s)
- 2
- Cord Range
- 0.230 to 0.685 in
- Dielectric Voltage
- Withstands 2000V per UL498
- Grounding
- Grounding
- Material
- Impact Modified Nylon, Solid Brass, Steel Zinc Plated, Thermoplastic, Nylon
- Clamp Insert
- Nylon
- Body Material
- Impact Modified Nylon
- Terminal Screws
- Brass
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- UL 498
- File E13399
- NOM
- 057
- RoHS Compliance
- True
- Country of Origin
- Mexico
Voltage125 VAC
Torque Range10-14 in-lbs
Wires3
Terminal Accommodation18-10 AWG
Operating Temperature-40°C to 60°C
EnvironmentDry
Cord ClampNylon
Assembly ScrewsSteel, Zinc Plated
Back CoverThermoplastic
Blades/ContactsSolid Brass
CSA C22.2 No. 42File LR-406
UL Fed Spec WC-596File E13393
ANSIC-73
FlammabilityRated HB or better UL94
BrandBlack and White
