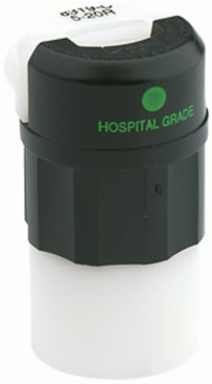

Leviton 8219-C 15 Amp 125 Volt Hospital Grade Straight Blade Connector, NEMA 5-15R
- MPN: 8219-C
- UPC: 078477795361
- PPN: LEV-8219-C
CAD
$38.16
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Connector, Straight Blade, Hospital Grade, Grounding, - BLACK-WHITE
Features
- One piece contacts reduce friction and overheating
- Rugged nylon construction resists impact, heat, chemicals, and rough use
- Ratings and NEMA I.D. permanently marked on device
- Industry exclusive limited lifetime warranty
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL 498
- File E13399
- Warranty
- Limited Lifetime Warranty Warranty
CSA C22.2 No. 42File LR-406
NOM057
UL Fed Spec WC-596File E13393
Material Specifications
- Assembly Screws
- Steel, Zinc Plated
- Blades/Contacts
- Solid Brass
- Clamp Insert
- Nylon
- Cord-Clamp
- Nylon
- Wire Module
- Nylon
Back CoverThermoplastic
Body MaterialImpact Modified Nylon
ColorBlack-White
Terminal ScrewsBrass
Mechanical Specifications
- Amperage
- 15 A
- Current Interrupting
- Certified for current interrupting at full rated current
- Grounding
- Grounding
- Product ID
- Ratings and NEMA I.D. permanently marked on device
- Terminal Accom.
- 18-10 AWG
- Torque Range
- 10-14 in-lbs
- Wire
- 3
Cord Range.245 - .700
Dielectric VoltageWithstands 2000V per UL498
Pole2
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Terminal IDBrass-Hot, Green-Ground, White-Neutral
Voltage125 VAC
Product Features
- Brand
- Black and White
- Grade
- Hospital
Device TypeStraight Blade Connector
Environmental Specifications
- Environment
- Dry
- Operating Temperature
- -40°C to 60°C
FlammabilityRated V-2 per UL 94
