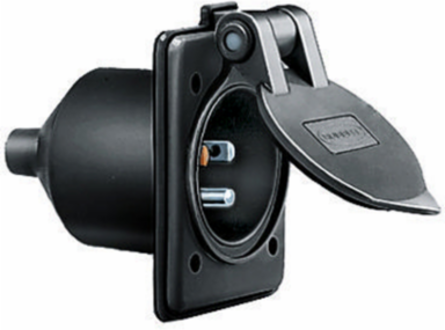

Hubbell Wiring Device-Kellems HBL61CM64BK Marine 15A 125V Weatherproofed Male Inlet, 2-Pole 3-Wire Grounding
- MPN: HBL61CM64BK
- UPC: 783585808666
- PPN: HBL-HBL61CM64BK
- UNSPSC: 39121406
CAD
$175.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Devices, Male Inlets, Weatherproofed, Marine, 15A 125V, 2-Pole 3-Wire Grounding, 5-15P, Black, Single Pack.
Features
- Weatherproof flip lid
- Weatherproof boot covers terminals
- Multiple drive screws
- Nickel plated brass blades
- Corrosion Resistant
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 5.120 in
- Industry Standard(s)
- Certified to CSA, C22.2, No. 42;NEMA® WD-6 Compliant;UL Listed, File E2186
- Amperage Rating
- 15 A
- Color
- Black
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- NEMA Rating
- 5-15P
- Number of Wires
- 3-Wire
- Special Features
- Corrosion Resistant
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
- Wattage
- 1875 W
- Voltage Rating Description
- 125 V
- General Literature Asset 1 Display Text
- Hubbell Marine Full Line Catalog
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- MARINE HULL INLET, 15A 125V, 5-15P, BK
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Sub Class Code
- A04A010
- Material - Mounting Hardware
- Screw Mounting
- Material
- Thermoplastic
- BOX SIZE
- 9.400x16.900x9.800 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585808666
- Case Weight
- 3.800 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 47.000 in
- Pallet Weight
- 209.000 lb.
- NAICS Code
- 335931A102
Current / Amperage Rating15 A
Horsepower - Maximum0.50
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-2;Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
ApplicationMarine Wiring Devices
Dielectric StrengthWithstands 2,000V minimum
InsulationInsulated Body
Number of Poles2-Pole
PhaseSingle Phase
StandardCertified to CSA, C22.2, No. 42;NEMA® WD-6 Compliant;UL Listed, File E2186
Voltage Rating125 V
Wire Size#14 AWG to #10 AWG
Weight0.25 lb.
ConnectivityScrew Terminals
Nema Rating5-15P
Number Of Wires3-Wire
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number61CM64BK
Cord Range0.300"-0.660" (7.6-16.8)
Current Rating15 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack3.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585808665
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
