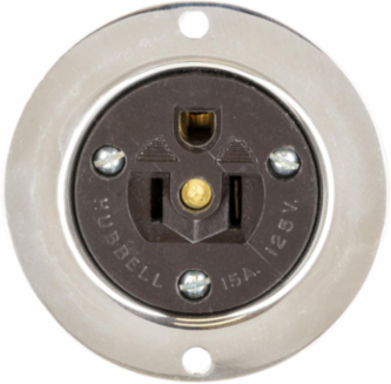

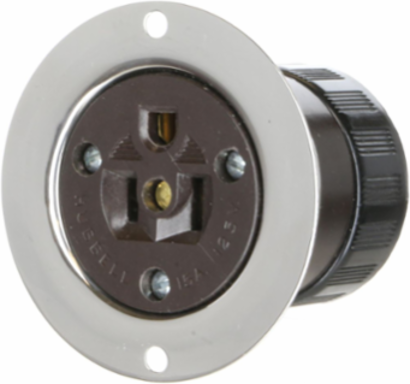

Hubbell Wiring Device-Kellems HBL5279 Straight Blade Flanged Inlet 15A 125V 2-Pole Stainless Steel
- MPN: HBL5279
- UPC: 783585013367
- PPN: HBL-HBL5279
- UNSPSC: 39121406
CAD
$185.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Inlets, Flanged, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Stainless,Brown
Features
- Stainless steel flange
- Covered terminal screws
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 2.980 in
- Industry Standard(s)
- Certified to CSA, C22.2, No. 42;NEMA® WD-6 Compliant;UL Listed, File E2186
- Standards - RoHS Compliance Status
- CM
- Application
- Heavy Duty
- Dielectric Strength
- Withstands 2,000V minimum
- NEMA Rating
- 5-15R
- Number of Wires
- 3-Wire
- Standard
- Certified to CSA, C22.2, No. 42;NEMA® WD-6 Compliant;UL Listed, File E2186
- Wattage
- 1875 W
- Voltage Rating Description
- 125 V
- General Literature Asset 1 Display Text
- Pulp & Paper Solutions
- Connectivity
- Screw Terminals
- Nema Rating
- 5-15R
- Number Of Wires
- 3-Wire
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 5279
- Cord Range
- 0.230"-0.720" (5.8-18.3)
- Current Rating
- 15 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.500 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 7.500 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating15 A
Horsepower - Maximum0.50
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-0;Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Amperage Rating15 A
ColorMetallic
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
Voltage Rating125 V
Wire Size#14 AWG to #10 AWG
Weight0.25 lb.
General Literature Asset 2 Display TextPULP & PAPER SOLUTIONS
Display SizeStandard Sized Product
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceFLG-RCPT, 15A 125V, 5-15P, SS
Harmonization Code8536694020
MSDS FlagNo
Sub Class CodeA04A020
Material - Mounting HardwareScrew Mounting
MaterialStainless Steel
BOX SIZE3.168x12.548x6.168 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585013367
Case - Total Units30 EA
Each - Pack DescriptionEach
NAICS Code335931A102
