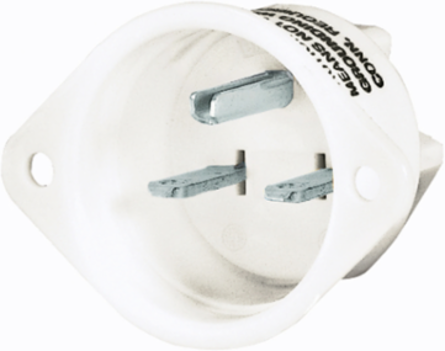

Bryant 5678G Flanged Male Inlet 15A 250V 2-Pole 3-Wire Grounding, 1.84 x 2.50 x 1.55 Inch, White
- MPN: 5678G
- UPC: 781786626089
- PPN: HBL-5678G
- UNSPSC: 39121406
CAD
$64.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Male Inlets, Flanged, Industrial/Commercial, Self-Grounding Strap, 15A 250V, 2-Pole 3-Wire Grounding, 6-15P, White, Single Pack
Features
- Flanged
- Industrial/Commercial
- Self-Grounding Strap
- 15A 250V
- 2-Pole 3-Wire Grounding
- Metallic Flange
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 1.84 in x 2.50 in x 1.55 in
- Length
- 1.84 in
- Application
- Extra Heavy Duty Industrial
- Dielectric Strength
- Withstands 3000V Minimum in
- Insulation
- Insulated Body
- Number of Poles
- 2-Pole
- Size
- 1.84 in x 2.50 in x 1.55 in
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
- Voltage Rating
- 250 V
- Voltage Rating Description
- 250 V
- Width
- 2.50 in
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Style
- Clamp Type
- Description - Invoice
- FLG-INLET, 15A 250V, 6-15P, MET
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Series
- Heavy Duty
- BOX SIZE
- 6.495x12.745x9.375 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 781786626089
- Each - Pack Description
- Each
Current / Amperage Rating15 A
Height1.55 in
Amperage Rating15 A
ColorWhite
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
NEMA Rating6-15P
Number of Wires3-Wire
Special FeaturesMetallic Flange
TypeFlanged Inlet
Wattage3750
Weight0.1 lb.
ConnectivityScrew Terminals
Nema Rating6-15P
Number Of Wires3-Wire
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA04A010
Current Rating15 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack15.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
