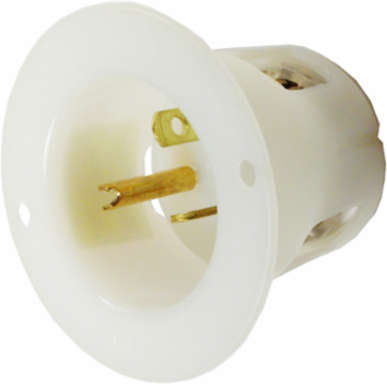

Hubbell Wiring Device-Kellems HBL5478C Flanged Male Inlet, 20A 250V, 2-Pole 3-Wire, White, 1.72 x 2.56 x 2.56 Inch
- MPN: HBL5478C
- UPC: 783585174952
- PPN: HBL-HBL5478C
- UNSPSC: 39121406
CAD
$89.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Devices, Male Inlets, Flanged, Industrial/Commercial, 20A 250V, 2-Pole 3-Wire Grounding, 6- 20P, White, Single Pack.
Features
- Impact resistant thermoplastic construction
- Backwired terminations for ease of installation
- #8-32 Multiple drive terminal screws
- Mounting screws included
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 1.72 in x 2.56 in x 2.56 in
- Horsepower - Maximum
- 2
- Length
- 1.72 in
- Standards - RoHS Compliance Status
- CM
- Application
- Extra Heavy Duty Industrial
- Dielectric Strength
- Withstands 2,000V minimum
- Insulation
- Insulated Body
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Standard Product
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
- Voltage Rating
- 250 V
- Wire Size
- #18 AWG to #10 AWG
- Weight
- 0.1 lb.
- General Literature Asset 1 Display Text
- Industrial Solutions
- General Literature Asset 3 Display Text
- PULP & PAPER SOLUTIONS
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- FLG-INLET, 20A 250V, 6-20P, WH
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Sub Class Code
- A04A020
- Current Rating
- 20 A
- Series
- Extra Heavy Duty
- BOX SIZE
- 4.048x13.428x2.798 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585174952
- Case - Total Units
- 50 EA
- Each - Pack Description
- Each
- NAICS Code
- 335931A102
Current / Amperage Rating20 A
Height2.56 in
Industry Standard(s)Certified to CSA, C22.2, No. 42;NEMA® WD-6 Compliant;UL Listed, File E2186
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-2;Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #18-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Amperage Rating20 A
ColorWhite
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
NEMA Rating6-20P
Number of Wires3-Wire
Size1.72 in x 2.56 in x 2.56 in
StandardCertified to CSA, C22.2, No. 42;NEMA® WD-6 Compliant;UL Listed, File E2186
TypeFlanged Inlet
Wattage5000 W
Voltage Rating Description250 V
Width2.56 in
General Literature Asset 2 Display TextPulp & Paper Solutions
ConnectivityScrew Terminals
Nema Rating6-20P
Number Of Wires3-Wire
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number5478C
Material - Mounting HardwareScrew Mounting
MaterialNylon
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight5.000 lb.
Lowest Level UOMEach
