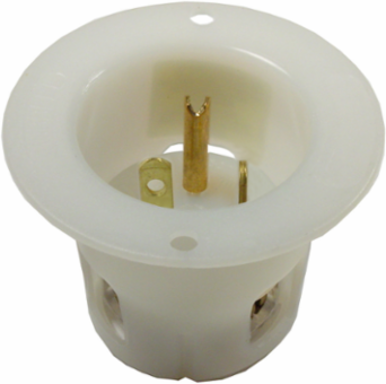

Hubbell Wiring Device-Kellems HBL5378C Industrial Flanged Male Inlet, 20A 125V, 2-Pole 3-Wire, White
- MPN: HBL5378C
- UPC: 783585174402
- PPN: HBL-HBL5378C
- UNSPSC: 39121406
CAD
$69.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Devices, Male Inlets, Flanged, Industrial/Commercial, 20A 125V, 2-Pole 3-Wire Grounding, 5- 20P, White, Single Pack.
Features
- Impact resistant thermoplastic construction
- Backwired terminations for ease of installation
- #8-32 Multiple drive terminal screws
- Mounting screws included
Specifications
Key Specifications
- General Literature Asset 1 Display Text
- Industrial Solutions
- General Literature Asset 3 Display Text
- Entertainment Product Solution Guide
- Current / Amperage Rating
- 20 A
- Height
- 1.71 in
- Industry Standard(s)
- Certified to CSA, C22.2, No. 42;NEMA® WD-6 Compliant;UL Listed, File E2186
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-2;Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #18-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
- Amperage Rating
- 20 A
- Color
- White
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- NEMA Rating
- 5-20P
- Number of Wires
- 3-Wire
- Size
- 1.71 in x 1.69 in x 1.71 in
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
- Voltage Rating
- 125 VAC
- Wire Size
- #18 AWG to #10 AWG
- Weight
- 0.1 lb.
- Conductor Range
- #18 AWG to #10 AWG
- Display Size
- Standard Sized Product
- Number Of Conductors
- 3-Wire
- Number Of Wires
- 3-Wire
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 5378C
- Cord Range
- 0.230"-0.720" (5.8-18.3)
- Current Rating
- 20 A
- Series
- Extra Heavy Duty
- BOX SIZE
- 4.000x13.400x2.800 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585174402
- Case - Total Units
- 50 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585174401
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
General Literature Asset 2 Display TextInsulgrip® Straight Blade and Twist-Lock® Devices
Country of OriginUnited States
Dimensions1.71 in x 1.69 in x 1.71 in
Horsepower - Maximum0.50
Length1.71 in
Standards - RoHS Compliance StatusCM
ApplicationExtra Heavy Duty Industrial
Dielectric StrengthWithstands 2,000V minimum
InsulationInsulated Body
Number of Poles2-Pole
PhaseSingle Phase
StandardCertified to CSA, C22.2, No. 42;NEMA® WD-6 Compliant;UL Listed, File E2186
TypeFlanged Inlet
Wattage2500 W
Voltage Rating Description125 V
Width1.69 in
ConnectivityBack Wired
Nema Rating5-20P
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceFLG-INLET, 20A 125V, 5-20P, WH
Harmonization Code8536699999
MSDS FlagNo
Sub Class CodeA04A020
Material - Mounting HardwareScrew Mounting
MaterialNylon
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight5.789 lb.
Lowest Level UOMEach
Pallet Height48.000 in
Pallet Weight738.000 lb.
NAICS Code335931A102
