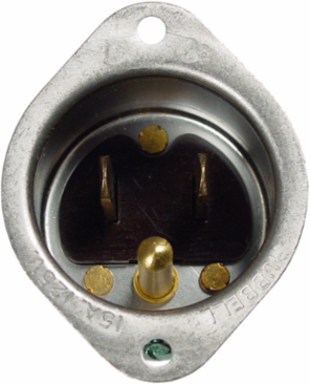

Hubbell Wiring Device-Kellems HBL5240 Miniature Flanged Male Inlet, 15A 125V, 2-Pole 3-Wire, Stainless Steel
- MPN: HBL5240
- UPC: 783585013138
- PPN: HBL-HBL5240
- UNSPSC: 39121406
CAD
$72.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Devices, Male Inlets, Miniature Flanged, Commercial, 15A 125V, 2-Pole 3-Wire Grounding, 5-15P, Metallic, Single Pack.
Features
- Stainless steel flange
- Minature style
- Mounting screws included
- Mini Version
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 2.400 in
- Industry Standard(s)
- Certified to CSA, C22.2, No. 42;NEMA® WD-6 Compliant;UL Listed, File E2186
- Amperage Rating
- 15 A
- Color
- Brass
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Standard
- Certified to CSA, C22.2, No. 42;NEMA® WD-6 Compliant;UL Listed, File E2186
- Type
- Flanged Inlet
- Wattage
- 1875 W
- Voltage Rating Description
- 125 V
- General Literature Asset 1 Display Text
- Pulp & Paper Solutions
- Connectivity
- Screw Terminals
- Nema Rating
- 5-15P
- Number Of Wires
- 3-Wire
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 5240
- Cord Range
- 0.300"-0.660" (7.6-16.8)
- Current Rating
- 15 A
- Series
- Extra Heavy Duty
- BOX SIZE
- 3.500x12.300x2.700 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585013138
- Case - Total Units
- 50 EA
- Each - Pack Description
- Each
- NAICS Code
- 335931A102
Current / Amperage Rating15 A
Horsepower - Maximum0.50
PerformanceElectrical: Current Interrupting: Certified for current interrupting at full rated current;Dielectric Voltage: Withstands 2,000V minimum;Mechanical: Product Identification: Ratings are a permanent part of the device;Terminal Accommodation: #18-#14 AWG copper stranded or solid wire only;Terminal Identification Terminals identified in accordance with UL 498 and CSA;Environmental: Flammability: UL 94 V-0;Operating Temperatures: Maximum continuous 75°C; minimum -40°C (w/o impact)
ApplicationHeavy Duty Industrial
Dielectric StrengthWithstands 2,000V minimum
NEMA Rating5-15P
Number of Wires3-Wire
Special FeaturesMini Version
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Voltage Rating125 VAC
Wire Size#18 AWG to #14 AWG
Weight0.15 lb.
General Literature Asset 2 Display TextPULP & PAPER SOLUTIONS
Display SizeMiniature
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceSB INLET, 15A 125V, 5-15P, SS, MINI
Harmonization Code8536694020
MSDS FlagNo
Sub Class CodeA04A020
Material - Mounting HardwareScrew Mounting
MaterialStainless Steel
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.35 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight7.700 lb.
Lowest Level UOMEach
