Hubbell Wiring Device-Kellems IG2162 Straight Blade Duplex Receptacle 20A 125V Isolated Ground 3.28 Inch x 1.36 Inch x 1.03 Inch
- MPN: IG2162
- UPC: 783585845135
- PPN: HBL-IG2162
- UNSPSC: 39121406
CAD
$88.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

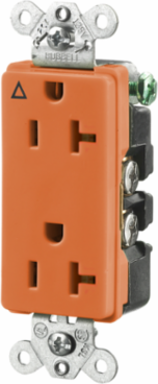

Straight Blade Duplex Receptacle, Commercial/Decorator Grade, Isolated Ground, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R
Features
- Triangle marking on face indicates isolated ground
- Aesthetic Style Line® decorator design
- Triple wipe contacts
- Isolated Ground
Specifications
Additional
| Amperage | 20 A |
|---|---|
| Number of Poles | 2-Pole |
| Wattage | 2500 W |
| Dielectric Voltage | 2000 V minimum |
| Current Interrupting | Certified |
| Size | 3.28 in x 1.36 in x 1.03 in |
| Material | Nylon Face, PBT Base, Brass Contacts |
| Contact Type | Triple wipe |
| Terminal Screws Material | Brass |
| Ground Contact Material | Brass |
| Ground Contact Thickness | .031 in |
| EU RoHS Indicator | Yes |
| Color | Orange |
| Voltage | 125 V |
|---|---|
| Wire | 3-Wire Grounding |
| Connectivity | Back and Side Wired Screw Terminals |
| Operating Temperature Range | -40 C to 75 C |
| Phase | Single Phase |
| Weight | 0.25 lb. |
| Mounting Hardware | Screw Mounting with Galvanized Steel Strap |
| Wire Clamp Material | Plated brass |
| Self-grounding Staple Material | Stainless steel |
| Mounting Strap Thickness | .040 in |
| Standards Compliance | UL 498, CSA 22.2 No. 42, Fed Spec WC596, NEMA WD-6 |
| NEMA Rating | 5-20R |
| Country of Origin | US |
