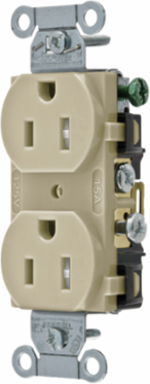

Hubbell Wiring Device-Kellems CR15ITR Commercial Grade 15A 125V Duplex Receptacle, Tamper-Resistant, Ivory
- MPN: CR15ITR
- UPC: 783585144221
- PPN: HBL-CR15ITR
CAD
$3.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Receptacles, Duplex, Commercial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Ivory, Single Pack.
Features
- Tamper-resistant shutter complies with national electrical code requirements
- Smooth face
- Triple wipe contacts
Documentation & Downloads
Specifications
Additional
- Amperage
- 15 A
- Number Of Poles
- 2-Pole
- Horsepower - Maximum
- 0.5 HP
- Length
- 1.32 in
- Height
- 3.28 in
- Wire Size
- #14 AWG to #10 AWG copper stranded or solid wire
- Material - Power Contacts
- Brass 0.030 in (0.8 mm)
- Material - Terminal Screws
- Plated steel
- Material - Mounting Screws
- Galvanized steel
- Flammability
- UL 94 V-2
- NEMA Rating
- 5-15R
- Tamper-Resistant
- Yes
- Type
- Traditional Duplex Tamper-Resistant
- Connectivity
- Side Wired
- Series
- Commercial Specification Grade
- OEM Brand Name
- Hubbell Wiring Device-Kellems
Voltage125 V
Number Of Wires3-Wire
Wattage1875 W
Width1.47 in
Weight0.15 lb
MaterialNylon
Material - Mounting StrapGalvanized steel 0.040 in (1 mm)
Material - Self-grounding StapleStainless steel
Dielectric StrengthWithstands 2,000 V minimum
Operating Temperature-40°C to 75°C
ComplianceUL Listed, CSA Certified, NEMA WD-6
StyleSmooth Face
ApplicationCommercial Specification Grade
PhaseSingle Phase
Environmental ConditionsIndoor Dry Unless Protected
