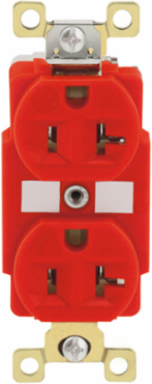

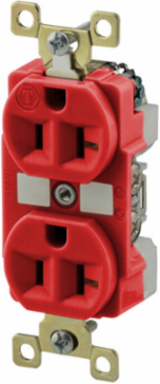

Bryant BRY5362RED Duplex Receptacle, Commercial/Industrial Grade, 20A 125V, NEMA 5-20R, Red
- MPN: BRY5362RED
- UPC: 781786005242
- PPN: HBL-BRY5362RED
- UNSPSC: 39121406
CAD
$84.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Red, Single Pack
Features
- Duplex
- Commercial/Industrial Grade
- 20A 125V
- 2-Pole 3-Wire Grounding
- 5-20R
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Dimensions
- 3.28 in x 1.54 in x 1.16 in
- Length
- 3.28 in
- Amperage Rating
- 20 A
- Color
- Red
- NEMA Rating
- 5-20R
- Number of Wires
- 3-Wire
- Size
- 3.28 in x 1.54 in x 1.16 in
- Type
- Duplex Receptacle
- Wattage
- 2500
- Voltage Rating Description
- 125 V
- Width
- 1.54 in
- Connectivity
- Back and Side Wired
- Nema Rating
- 5-20R
- Number Of Wires
- 3-Wire
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A04A020
- Current Rating
- 20 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.3 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 23.350 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating20 A
Height1.16 in
Standards - RoHS Compliance StatusCM
ApplicationExtra Heavy Duty Industrial Specification Grade
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesStandard Product
Voltage Rating125 V
Wire Size#14 AWG to #12 AWG
Weight0.2 lb.
General Literature Asset 1 Display TextGeneral Literature - BRYANT® Wiring Devices
Display SizeStandard Sized Product
Number Of Poles2-Pole
StyleFinder Groove Face
Description - InvoiceDUP RCPT, IND GRD, 20A 125V, 5-20R, RD
Harmonization Code8536698000
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
SeriesExtra Heavy Duty
BOX SIZE2.900x8.600x5.200 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack781786005242
Case - Total Units100 EA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
