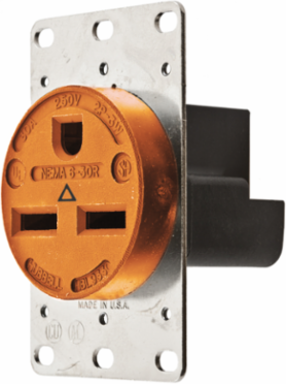

Hubbell Wiring Device-Kellems IG9330 Industrial Grade Flush Receptacle 30A 250V 2-Pole 3-Wire Grounding
- MPN: IG9330
- UPC: 783585880754
- PPN: HBL-IG9330
- UNSPSC: 39121406
CAD
$137.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Straight Blade Receptacle, Flush Receptacle, Industrial Grade, 2-Pole 3-Wire Grounding, 30A 250V, 5-20R
Features
- Sequenced contacts assure protection
- Catalog number, ratings and certifications molded in face
- One piece design power and ground contacts
- Isolated Ground
Specifications
Additional
| Amperage | 30 A |
|---|---|
| Number of Poles | 2-Pole |
| Device Type | Single Receptacle |
| Dielectric Voltage Withstand | 2,000 V minimum |
| Connectivity | Back and Side Wired Screw Terminals |
| Weight | 0.4 lb. |
| Mounting Hardware Material | Screw Mounting; Pre-Plated Steel Mounting Plate (0.062 in thick) |
| Ground Shunt Material | Brass |
| Flammability Rating | UL 94 V-0 |
| NEMA Rating | 6-30R |
| Country of Origin | US |
| Phase | Single Phase |
| Series | Straight Blade |
| Voltage | 250 V |
|---|---|
| Number of Wires | 3-Wire |
| Operating Temperature Range | -40 C to 75 C |
| Grounding Type | Isolated Ground |
| Size | 3.68 in x 2.25 in x 2.23 in |
| Housing Material | Thermoplastic/Composite (Reinforced Thermoplastic Polyester) |
| Contacts Material | Brass |
| Box Terminals Material | Copper |
| IP Rating | IP20 |
| Compliance | CSA Certified; UL Listed (File E2186); WR Rating; RoHS Compliant |
| Color | Orange |
| Wattage | 7,500 W |
| Buy American Compliant | Yes |
