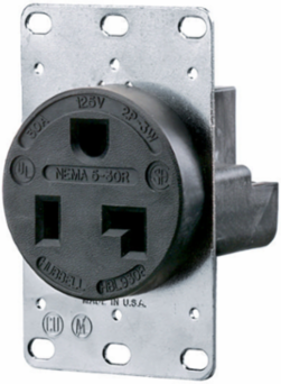

Hubbell Wiring Device-Kellems HBL9308 Industrial Grade Receptacle 2-Pole 3-Wire 30A 125V 5-30R Black
- MPN: HBL9308
- UPC: 783585015217
- PPN: HBL-HBL9308
- UNSPSC: 39121406
CAD
$94.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Devices, Receptacles, Industrial Grade, 2-Pole 3-Wire Grounding, 30A 125V, 5-30R, Black RTP, Single Pack.
Features
- Sequenced contacts assure protection
- Catalog number, ratings and certifications molded in face
- One piece design power and ground contacts
- Standard
Documentation & Downloads
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBL9308 AutoCAD Drawing
- General Literature Asset 2 Display Text
- PULP & PAPER SOLUTIONS
- Current / Amperage Rating
- 30 A
- Industry Standard(s)
- CSA Certified;NEMA® WD-6 Compliant;UL Listed File E2186;WR Rating
- Standards - RoHS Compliance Status
- CM
- Application
- Heavy Duty
- Dielectric Strength
- Withstands 2,000V minimum
- NEMA Rating
- 5-30R
- Number of Wires
- 3-Wire
- Special Features
- Standard
- Type
- Receptacle
- Wattage
- 3750 W
- Voltage Rating Description
- 125 V
- Width
- 2.23 in
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 9308
- Material - Mounting Hardware
- Screw Mounting
- Series
- Extra Heavy Duty
- BOX SIZE
- 5.800x8.400x6.900 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585015217
- Case Weight
- 2.025 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 46.400 in
- Pallet Weight
- 1148.400 lb.
General Literature Asset 1 Display TextPulp & Paper Solutions
Country of OriginUnited States
Horsepower - Maximum2
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-0;Environmental - IP Suitability - IP20;Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #12 AWG through #4 AWG copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Amperage Rating30 A
ColorBlack
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
StandardCSA Certified;NEMA® WD-6 Compliant;UL Listed File E2186;WR Rating
Voltage Rating125 V
Wire Size#12 AWG to #4 AWG
Weight0.45 lb.
ConnectivityBack and Side Wired Screw Terminals
Nema Rating5-30R
Number Of Wires3-Wire
StyleGrounding
Description - InvoiceRCPT, 2P3W, 30A 125V, 5-30R, BK
Harmonization Code8536690200
MSDS FlagNo
Sub Class CodeA04A080
Current Rating30 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack4.900 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585015216
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
