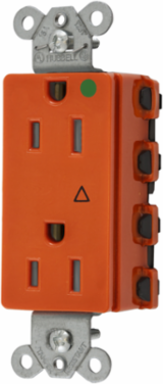

Hubbell Wiring Device-Kellems SNAP2172IGL Hospital Grade Decorator Receptacle 15A 125V Isolated Ground 3.28x1.64x1.1 Inch
- MPN: SNAP2172IGL
- UPC: 783585249315
- PPN: HBL-SNAP2172IGL
- UNSPSC: 39121406
CAD
$48.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Devices, Receptacles, Style Line Decorator, SNAPConnect®, Hospital Grade, Isolated Ground, LED Indicator, 15A 125V, 2-Pole 3- Wire Grounding, 5-15R, Nylon, Orange
Features
- Audible SNAP, indicates solid connection
- Reduces installation time
- Isolated Ground, LED Indicator
- Quick Connect- SNAPConnect®, Isolated Ground, LED Indicator
Documentation & Downloads
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- SNAP2172IGL AutoCAD Drawing
- General Literature Asset 3 Display Text
- Leaders In Screwless Termination
- Current / Amperage Rating
- 15 A
- Height
- 1.1 in
- Industry Standard(s)
- Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
- Performance
- Electrical: Current Interrupting- Certified for current interrupting at full rated current;Electrical: Dielectric Voltage- Withstands 2,000V minimum;Mechanical: Product Identification Ratings are a permanent part of the device;Environmental: Flammability- UL 94V-2;Environmental: Operating Temperature- Maximum continuous 75°C;minimum -40°C (w/o impact)
- Application
- Hospital Grade
- Dielectric Strength
- Withstands 2,000V minimum
- NEMA Rating
- 5-15R
- Number of Wires
- 3-Wire
- Size
- 3.28 in x 1.64 in x 1.1 in
- Standard
- Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
- Voltage Rating
- 125 V
- Wire Size
- #12 AWG
- Weight
- 0.2 lb.
- General Literature Asset 1 Display Text
- Electrical Products - Healthcare Solutions
- Display Size
- Standard Sized Product
- Number Of Conductors
- 3-Wire Grounding
- Number Of Wires
- 3-Wire
- Style
- Style Line Decorator
- Description - Invoice
- SNAP2CONNECT2 DECO HG 15A/125V IG LED OR
- Harmonization Code
- 8536690200
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Indicator(s) Type
- Green LED
- Series
- SNAPConnect® Series
- BOX SIZE
- 3.548x9.858x4.298 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585249315
- Case Weight
- 20.000 lb.
- Lowest Level UOM
- Each
General Literature Asset 2 Display TextElectrical Products - Healthcare Solutions
Country of OriginChina
Dimensions3.28 in x 1.64 in x 1.1 in
Horsepower - Maximum0.5
Length3.28 in
Amperage Rating15 A
ColorOrange
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesQuick Connect- SNAPConnect®, Isolated Ground, LED Indicator
TypePower Indicating LED
Wattage1875 W
Voltage Rating Description125 V
Width1.64 in
ConnectivityConnectorized
Nema Rating5-15R
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA04A040
Current Rating15 A
MaterialNylon
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
NAICS Code335931A102
