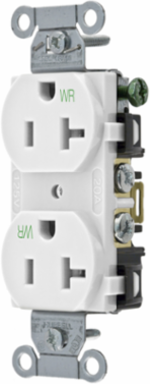

Hubbell Wiring Device-Kellems BR20WHIWR Weather-Resistant Duplex Receptacle, 20A 125V, 2-Pole 3-Wire, White
- MPN: BR20WHIWR
- UPC: 783585144665
- PPN: HBL-BR20WHIWR
- UNSPSC: 39121406
CAD
$18.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Devices, Receptacles, Weather-Resistant Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5- 20R, White, Single Pack.
Features
- Weather-resistance complies with national electrical code requirements
- Smooth face
- Wrap-around galvanized steel strap
- Triple wipe contacts
- Weather Resistant- Self Grounding
Specifications
Key Specifications
- Country of Origin
- China
- Dimensions
- 1.32 in x 1.06 in x 3.28 in
- Horsepower - Maximum
- 1
- Length
- 1.32 in
- Standards - RoHS Compliance Status
- CM
- Application
- Commercial Specification Grade
- Dielectric Strength
- Withstands 2,000V minimum
- NEMA Rating
- 5-20R
- Number of Wires
- 3-Wire
- Size
- 1.32 in x 1.06 in x 3.28 in
- Standard
- Certified to CSA C22.2, No. 42;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
- Voltage Rating
- 125 V
- Wire Size
- #12 AWG to #10 AWG
- Weight
- 0.15 lb.
- General Literature Asset 1 Display Text
- EdgeConnect™ Technology FAQ
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A04A060
- Current Rating
- 20 A
- Series
- Commercial Specification Grade
- BOX SIZE
- 2.300x8.000x4.300 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585144665
- Case - Total Units
- 100 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585144664
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Current / Amperage Rating20 A
Height3.28 in
Industry Standard(s)Certified to CSA C22.2, No. 42;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-2;Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Amperage Rating20 A
ColorWhite
Environmental ConditionsWeather Resistant
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesWeather Resistant- Self Grounding
TypeWeather Resistant
Wattage2500 W
Voltage Rating Description125 V
Width1.06 in
ConnectivityBack and Side Wired
Nema Rating5-20R
Number Of Wires3-Wire
StyleSmooth Face
Description - InvoiceWTR RES, COM GRD, 20A 125V, 5-20R, WH
Harmonization Code8536698000
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialNylon
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.8 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight5.469 lb.
Lowest Level UOMEach
Pallet Height43.000 in
Pallet Weight1656.000 lb.
NAICS Code335931A102
