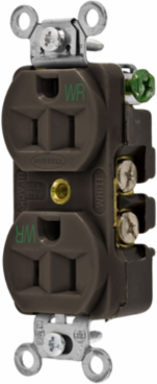

Hubbell Wiring Device-Kellems 5262WR Weather Resistant Duplex Receptacle, 2-Pole 3-Wire, 15A 125V, Brown
- MPN: 5262WR
- UPC: 783585358567
- PPN: HBL-5262WR
- UNSPSC: 39121406
CAD
$16.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Straight Blade Devices, Weather Resistant Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Brown
Features
- Weather-resistance complies with national electrical code requirements
- Finder Groove Face
- Triple wipe contacts
- Compact design
- Self Grounding
Specifications
Key Specifications
| Country of Origin | Puerto Rico |
|---|---|
| Dimensions | 3.28 in x 1.41 in x 1.09 in |
| Horsepower - Maximum | 0.5 |
| Length | 3.28 in |
| Amperage Rating | 15 A |
| Color | Brown |
| Environmental Conditions | Weather Resistant |
| NEMA Rating | 5-15R |
| Number of Wires | 3-Wire |
| Size | 3.28 in x 1.41 in x 1.09 in |
| Standard | UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant |
| Type | Weather Resistant Duplex |
| Wattage | 1875 W |
| Voltage Rating Description | 125 V |
| Width | 1.41 in |
| Connectivity | Back and Side Wired |
| Mounting Type | Screw Mount |
| Number Of Poles | 2-Pole |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Class Code | A04 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A04A022 |
| Current Rating | 15 A |
| Series | Hubbell-PRO |
| BOX SIZE | 2.000x7.600x4.100 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585358567 |
| Case - Total Units | 100 EA |
| Each - Pack Description | Each |
| NAICS Code | 335931A102 |
| Current / Amperage Rating | 15 A |
|---|---|
| Height | 1.09 in |
| Industry Standard(s) | UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-2;Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Application | Hubbell-Pro Heavy Duty |
| Dielectric Strength | Withstands 2,000V minimum |
| Mounting | Screw Mount |
| Number of Poles | 2-Pole |
| Phase | Single Phase |
| Special Features | Self Grounding |
| Temperature Rating | Maximum continuous 75°C; minimum -40°C (w/o impact) |
| Voltage Rating | 125 V |
| Wire Size | #14 AWG to #10 AWG |
| Weight | 0.2 lb. |
| General Literature Asset 1 Display Text | EdgeConnect™ Technology FAQ |
| Display Size | Standard Sized Product |
| Nema Rating | 5-15R |
| Number Of Wires | 3-Wire |
| Style | Finder Groove Face |
| Description - Invoice | HUBBELL PRO WR RECPT, DUP, 15A 125V, BR |
| Harmonization Code | 8536698000 |
| MSDS Flag | No |
| Material - Mounting Hardware | Screw Mounting |
| Material | Thermoplastic/Composite |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 1.95 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Case Weight | 20.000 lb. |
| Lowest Level UOM | Each |
