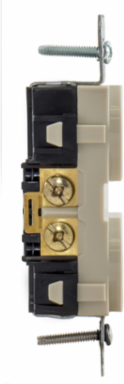

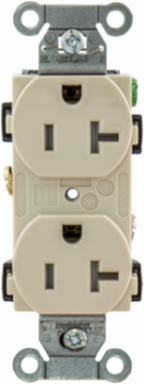

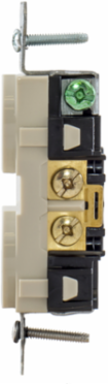

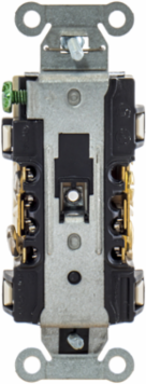

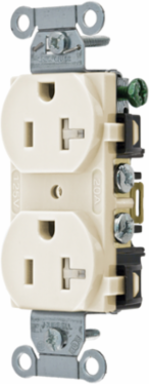

Hubbell Wiring Device-Kellems BR20LATR Tamper-Resistant Duplex Receptacle 20A 125V Light Almond
Hubbell Wiring Device-Kellems BR20LATR Tamper-Resistant Duplex Receptacle 20A 125V Light Almond
- MPN: BR20LATR
- UPC: 783585144177
- PPN: HBL-BR20LATR
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$20.23/ EA
Description
Straight Blade Devices, Receptacles, Tamper-Resistant Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Light Almond, Single Pack.
Features
- Tamper-resistant shutter complies with national electrical code requirements
- Smooth face
- Wrap-around galvanized steel straps
- Triple wipe contacts
Specifications
Dimensions
- Dimensions
- 1.32 in x 1.47 in x 3.28 in
- Height
- 3.28 in
- Weight
- 0.15 lb
Display SizeStandard Sized Product
Length1.32 in
Width1.47 in
Certifications and Compliance
- Nema Rating
- 5-20R
Conductor Related
- Number Of Wires
- 3-Wire
Wire Size#12 AWG to #10 AWG
General
- Application
- Commercial Specification Grade
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Item Type
- Traditional Duplex
- Material - Mounting Hardware
- Screw Mounting
- OEM Brand Name
- Hubbell Wiring Device-Kellems
- Series
- Commercial Specification Grade
- Type
- Tamper-Resistant
ColorLight Almond
Horsepower - Maximum1
MaterialNylon
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
StyleSmooth Face
UPC783585144177
Electrical Ratings
- Amperage Rating
- 20 A
- Current / Amperage Rating
- 20 A
- Dielectric Strength
- Withstands 2,000V minimum
- Voltage Rating
- 125 V
- Wattage
- 2500 W
ConnectivityBack and Side Wired
Current Rating20 A
PhaseSingle Phase
Voltage Rating Description125 V
Logistics
- Carton Quantity
- 10 EA
Downloads
